Basalt Quarry Case Study | LOX Liquid Oxygen Rock Splitting Solution

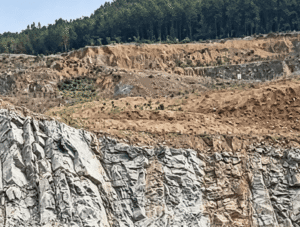

Overview This case study introduces how we solved low efficiency and high operating costs for a basalt quarry. Basalt features...
Learn More

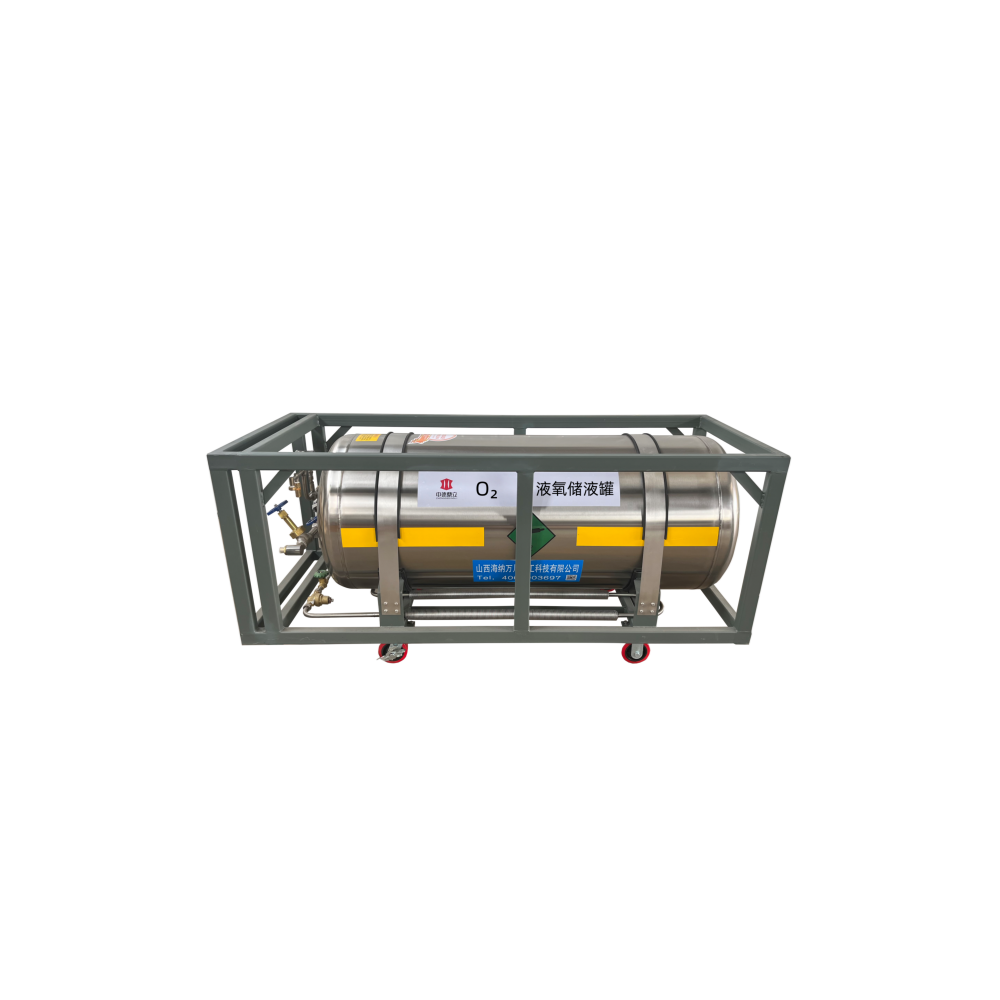

LOX rock splitting system
The DL-III LOX (Liquid-oxygen) Rock Splitting Technology is a non-explosive, low-vibration and high-power rock splitting system. It leverages the physical property that low-temperature liquid oxygen vaporizes within a confined space to generate tremendous physical expansion force for rock fragmentation. This technology completely transforms the high-risk operation mode of traditional explosive blasting. As the system does not involve any hazardous chemicals, and liquid oxygen can be easily purchased from local industrial gas filling stations, it is not classified as a civil explosive materials,which brings great convenience and flexibility in transportation, storage and operation.
The equipment is applicable to hard rock excavation sites including open-pit mines, quarries, earthwork projects and road foundation excavation.
Certified:
ISO 9001
CE
Real-world Use Cases
Application Scenes
The LOX rock splitting system is widely used in various mine infrastructure and geotechnical excavation projects. Details are as follows:
1 Mining Operations:
Hard rock mining in open-pit mines;
Stone extraction in quarries;
Rock strata stripping;
2 Infrastructure & Geotechnical Engineering:
Large-scale earthwork projects;
Foundation pit excavation;
Trench construction;
Slope trimming;
Secondary breaking of boulders.
Related Applications

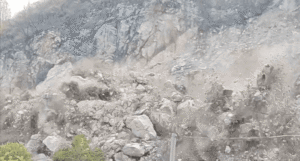

Calcite Quarry Case Study | LOX Liquid Oxygen Rock Splitting Solution
Overview This case study shares our customized LOX liquid oxygen rock splitting solution for a professional calcite quarry. Calcite is...
Learn More
How It Works
Product Principle
The DL-III LOX Rock Splitting System utilizes the featurer of liquid oxygen (-183°C) , which achieves a volume expansion ratio of over 800 times during instantaneous phase transition from liquid to gas, triggering brittle fracture of rock mass.

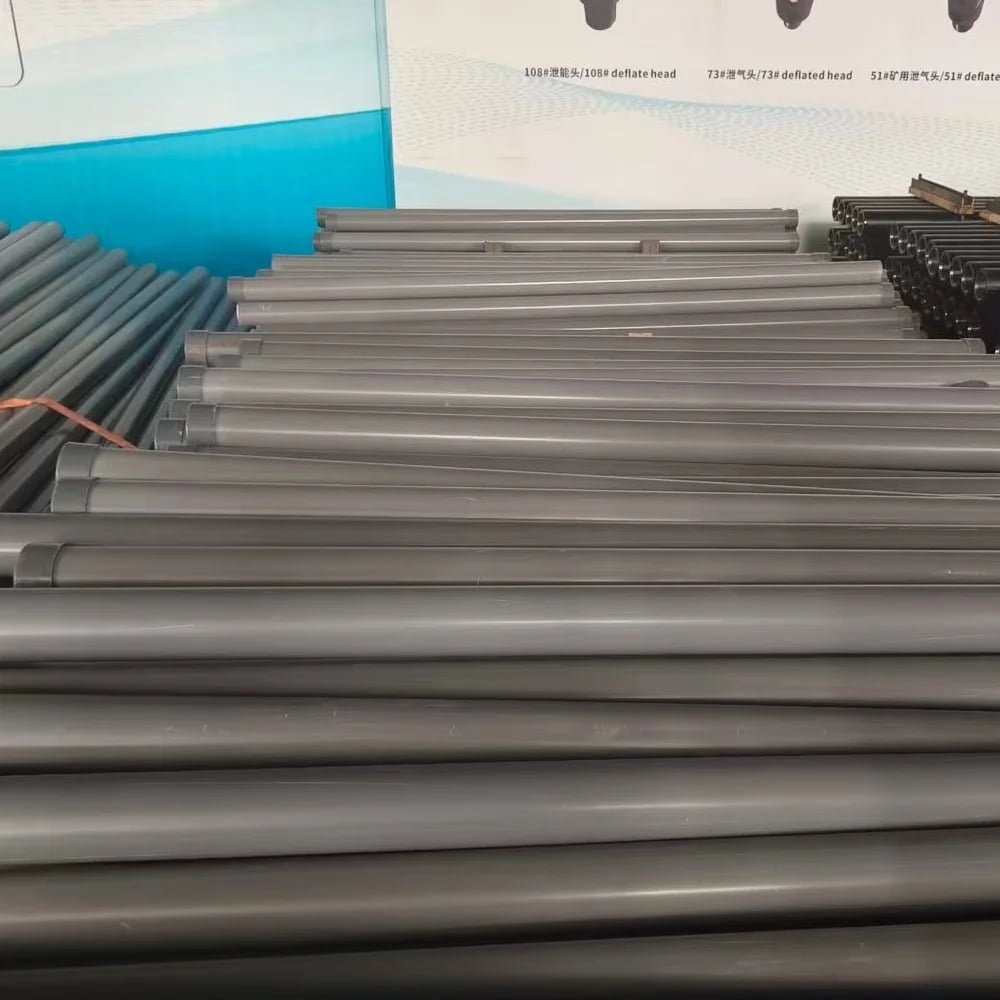

- Filling: Fill liquid gas into the rock splittingpipes.
- Initiation: Activate the liquid gas with micro-current to release massive heat instantly.
- Phase Transition: The liquid gas rapidly vaporizes upon heating and expands 800 times in volume, generating impact pressure within the confined space.
- Fracturing: High-pressure gas ruptures the pressure-set shear disc, acts on the rock face, and strips or breaks rocks from the rock mass.

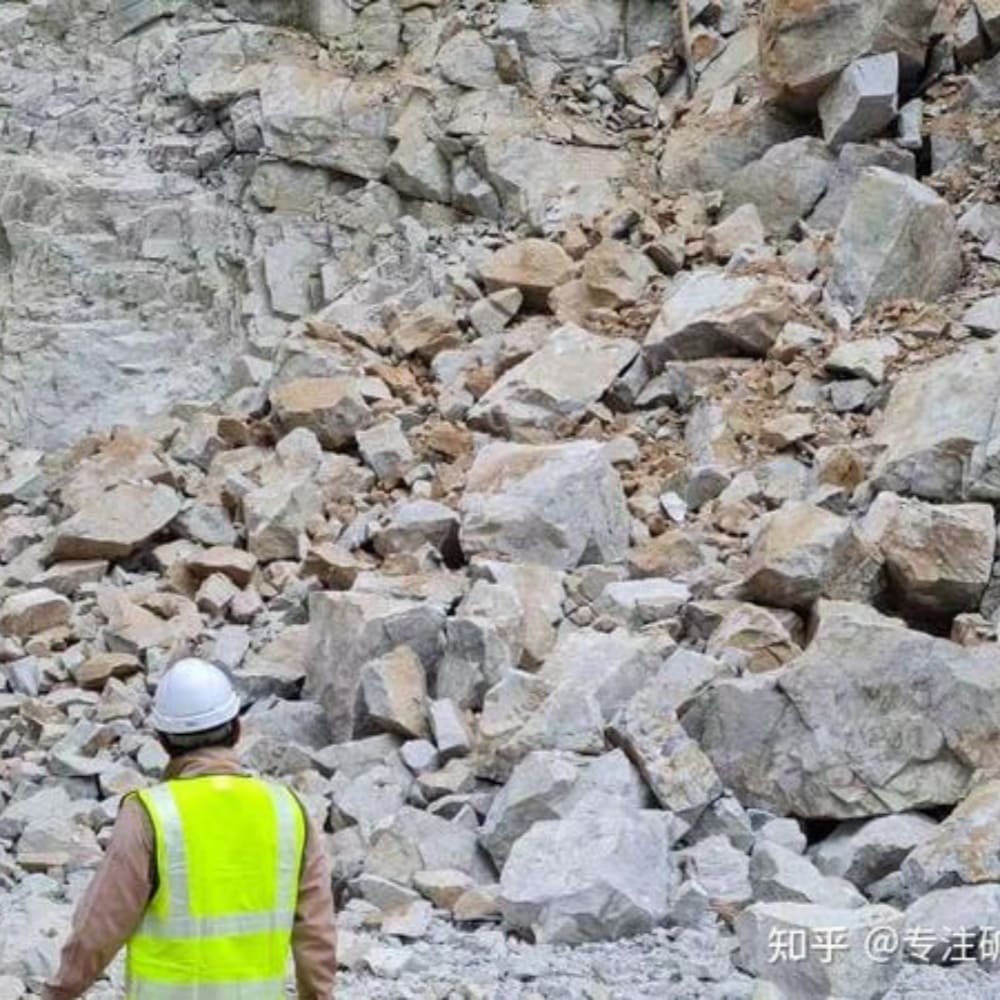

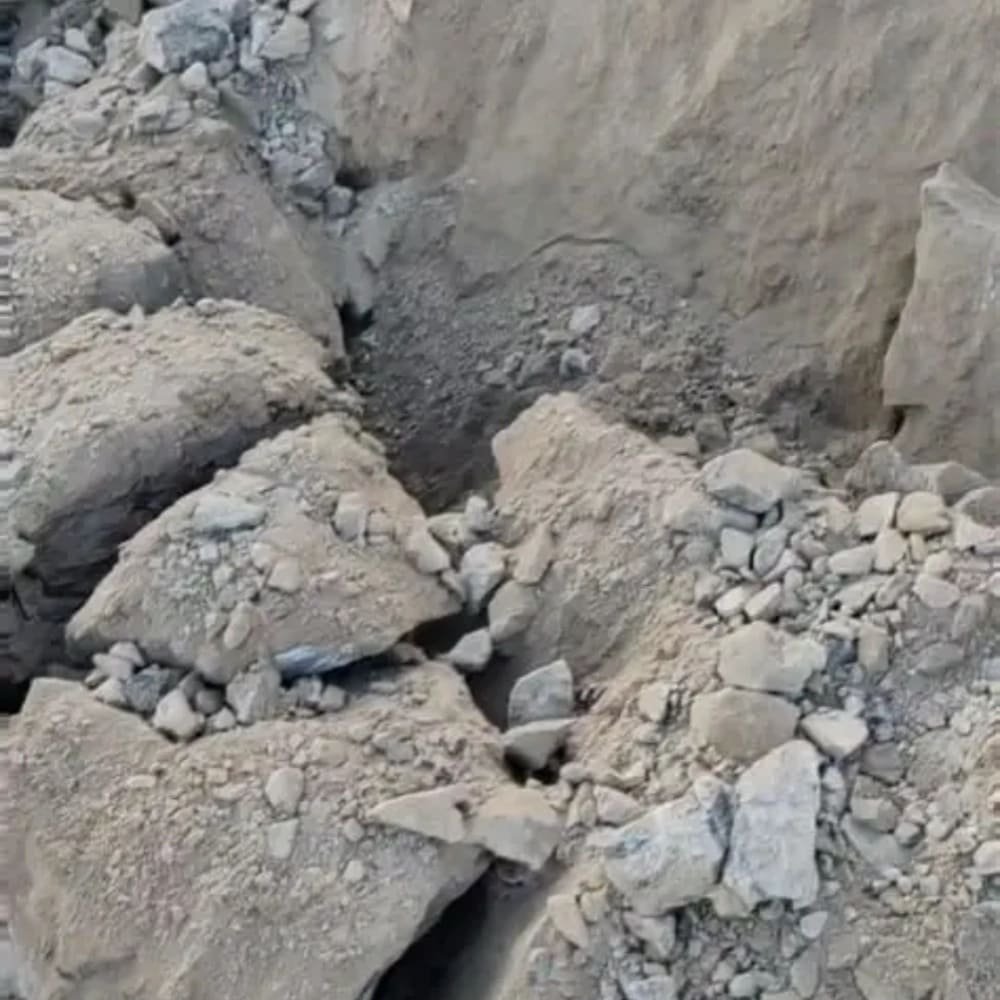

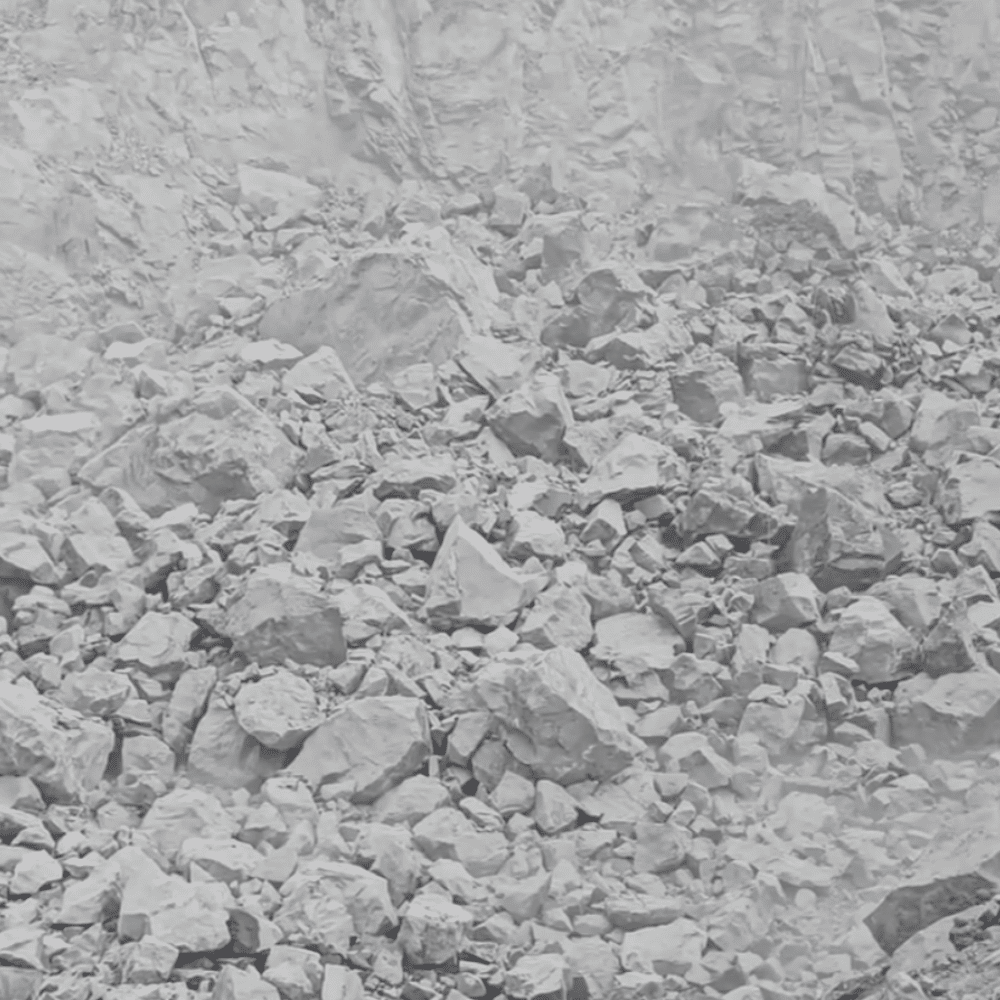

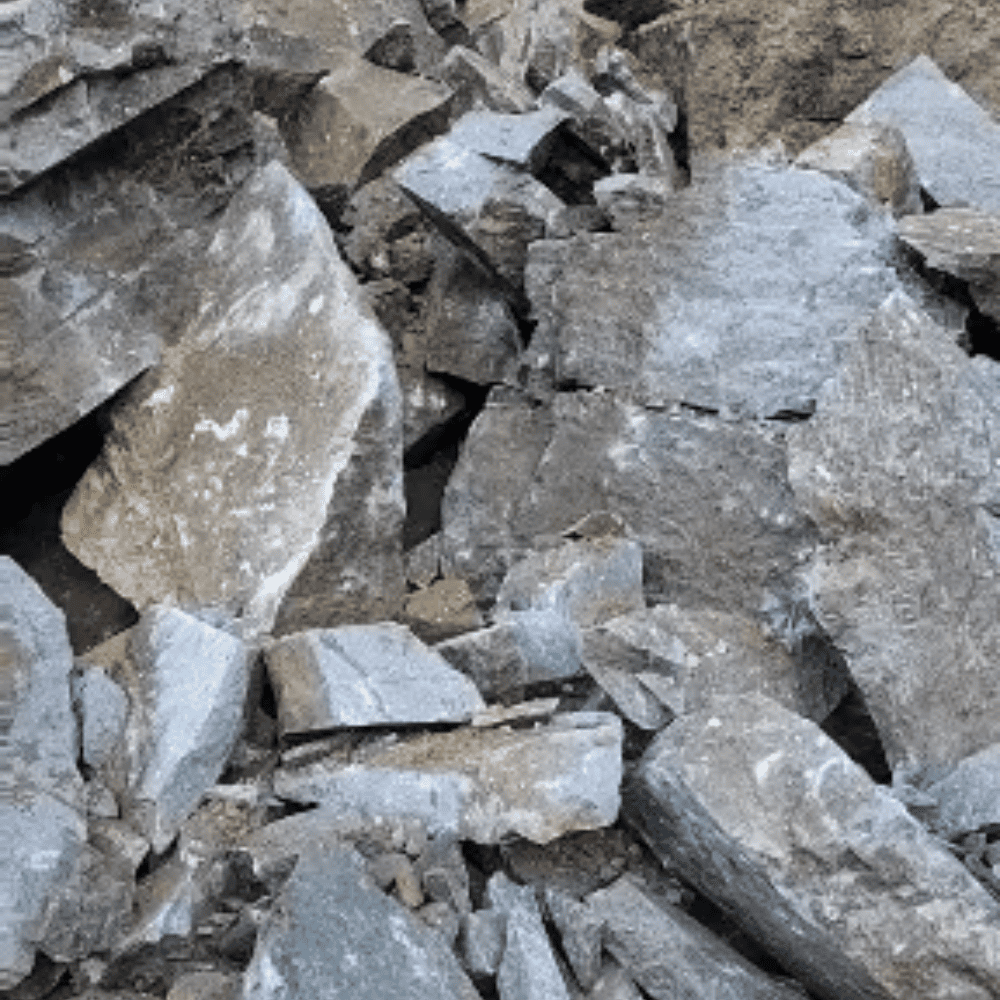

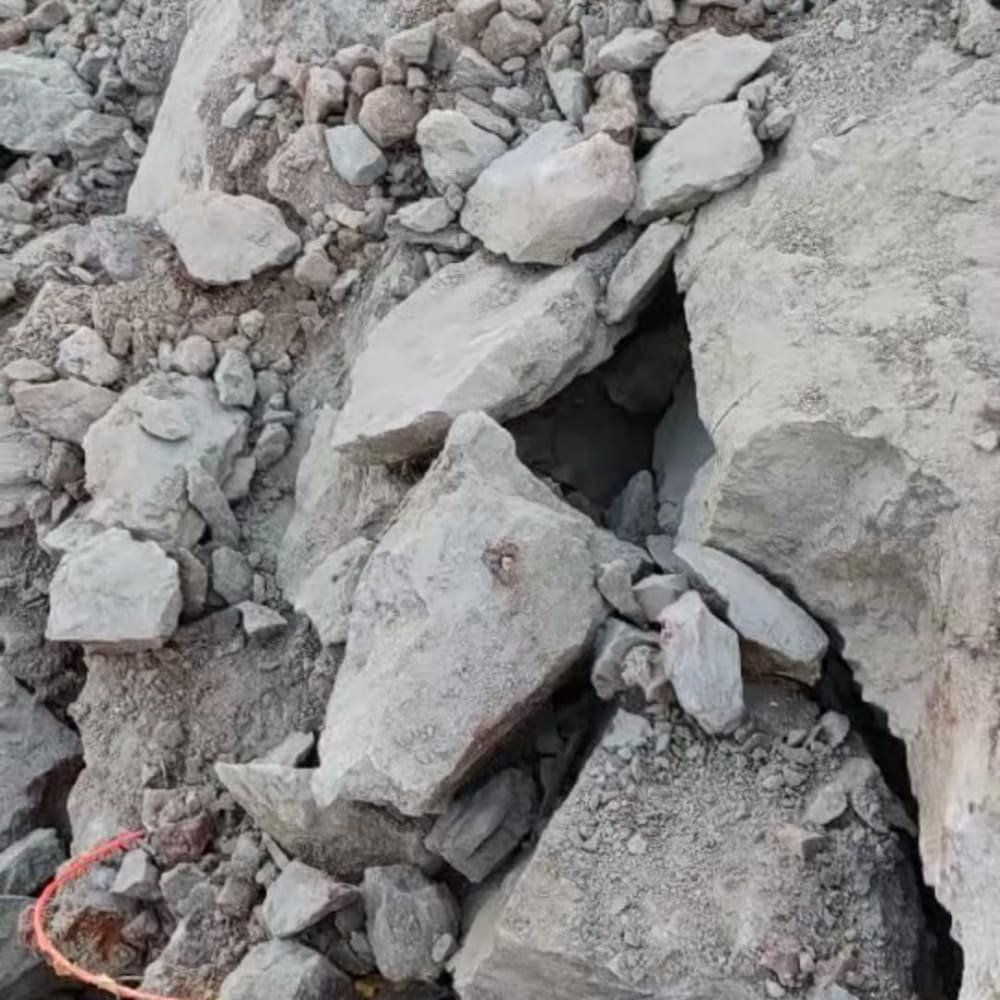

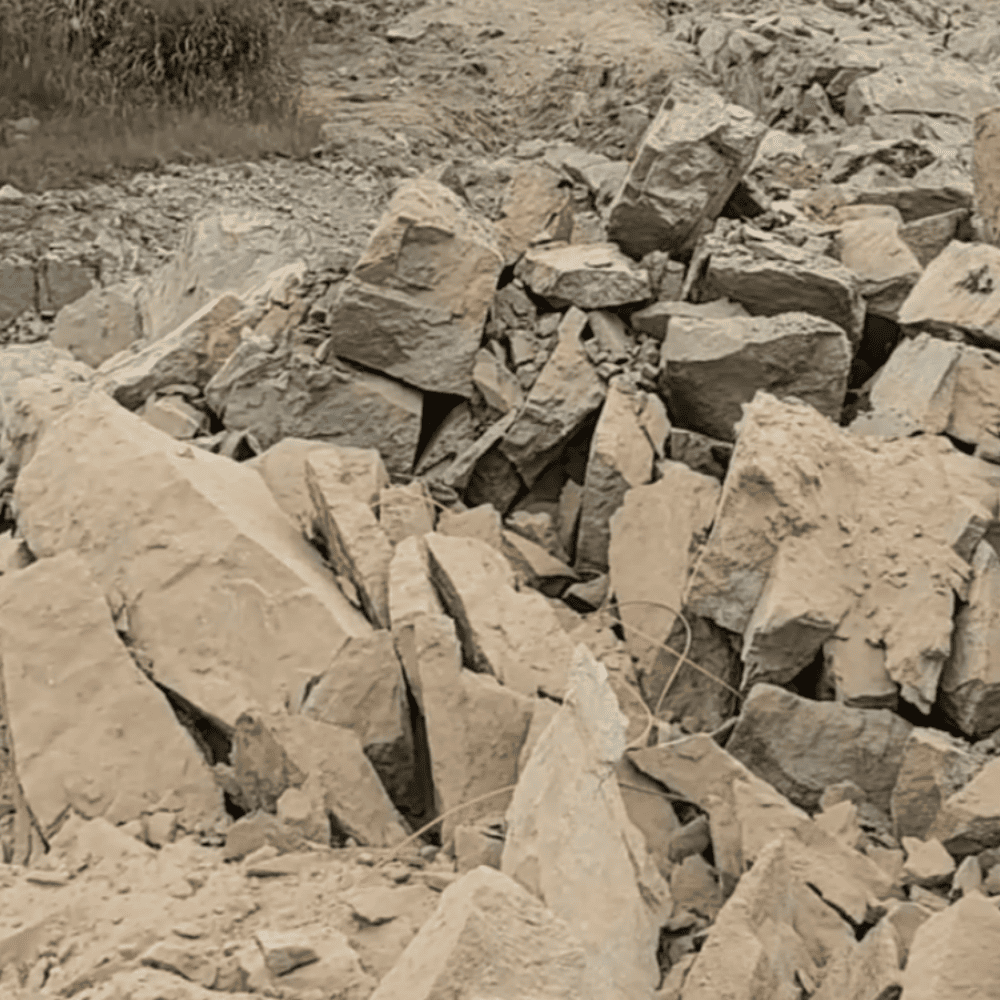

Why Choose Us
Product Advantage
Safety
On‑site filling design. Fracturing tubes carry no explosion risk before LOX filling, greatly reducing transport and storage hazards.
Environmental Protection
Reaction outputs are water vapor, CO₂ and minor oxygen. No toxic nitrogen oxides, sulfide gases or heavy dust from conventional explosives.
Low Vibration & Low Noise
Extremely low peak particle velocity (~3.04 cm/s at 3 m). Minimal disturbance to nearby buildings and foundations, ideal for sites close to residential areas, protected zones and sensitive pipelines.
High Energy Output
Adjustable fracturing power. High rock fragmentation rate with very few oversized boulders.
Cost‑Effective
Low overall fracturing cost. Superior large‑scale economic performance versus traditional mechanical excavation and static cracking.
Global Supply Chain

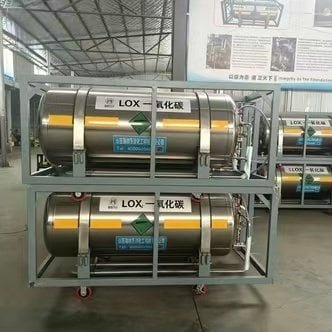

Mature worldwide industrial liquid‑oxygen supply network. Easy on‑site refilling and raw‑material sourcing.
Zero Residual Hazards
Once liquid oxygen is fully vaporized, only non‑explosive waste stays in boreholes. No physically or chemically explosive residues left behind.
Data Sheet
Technical Specifications
| Model | Diameter | Length | LOX capacity | Drilling diameter | Drilling depth | -- | -- |
|---|---|---|---|---|---|---|---|
| -- | mm | m | kg/m | mm | m | -- | -- |
| D90/2 | 750 | 2 | 5-8 | 90 | 4.5--6 | -- | -- |
| D90/4 | 750 | 4 | 5-8 | 90 | 6.5--8 | -- | -- |
| D90/6 | 750 | 6 | 5-8 | 90 | 8.5--10 | -- | -- |
| D90/2C | 750 | 2(connectable) | 5-8 | 90 | ------ | -- | -- |
| D110/2 | 900 | 2 | 5-8 | 110 | 4.5--6 | -- | -- |
| D110/4 | 900 | 4 | 5-8 | 110 | 6.5--8 | -- | -- |
| D110/6 | 900 | 6 | 5-8 | 110 | 8.5--10 | -- | -- |
| D110/2C | 900 | 2(connectable) | 5-8 | 110 | ------ | -- | -- |
