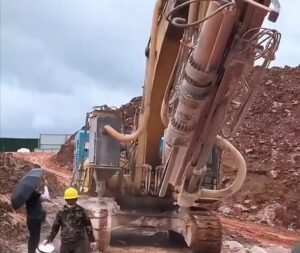

DL115 Drill & Splitter Case: Zhejiang Limestone Quarry Boosts Output 3–5X
1. Client’s Pain Points: Low Output & High Wear Cost on Hard Limestone Client’s Zhejiang limestone quarry was banned from...
Learn More

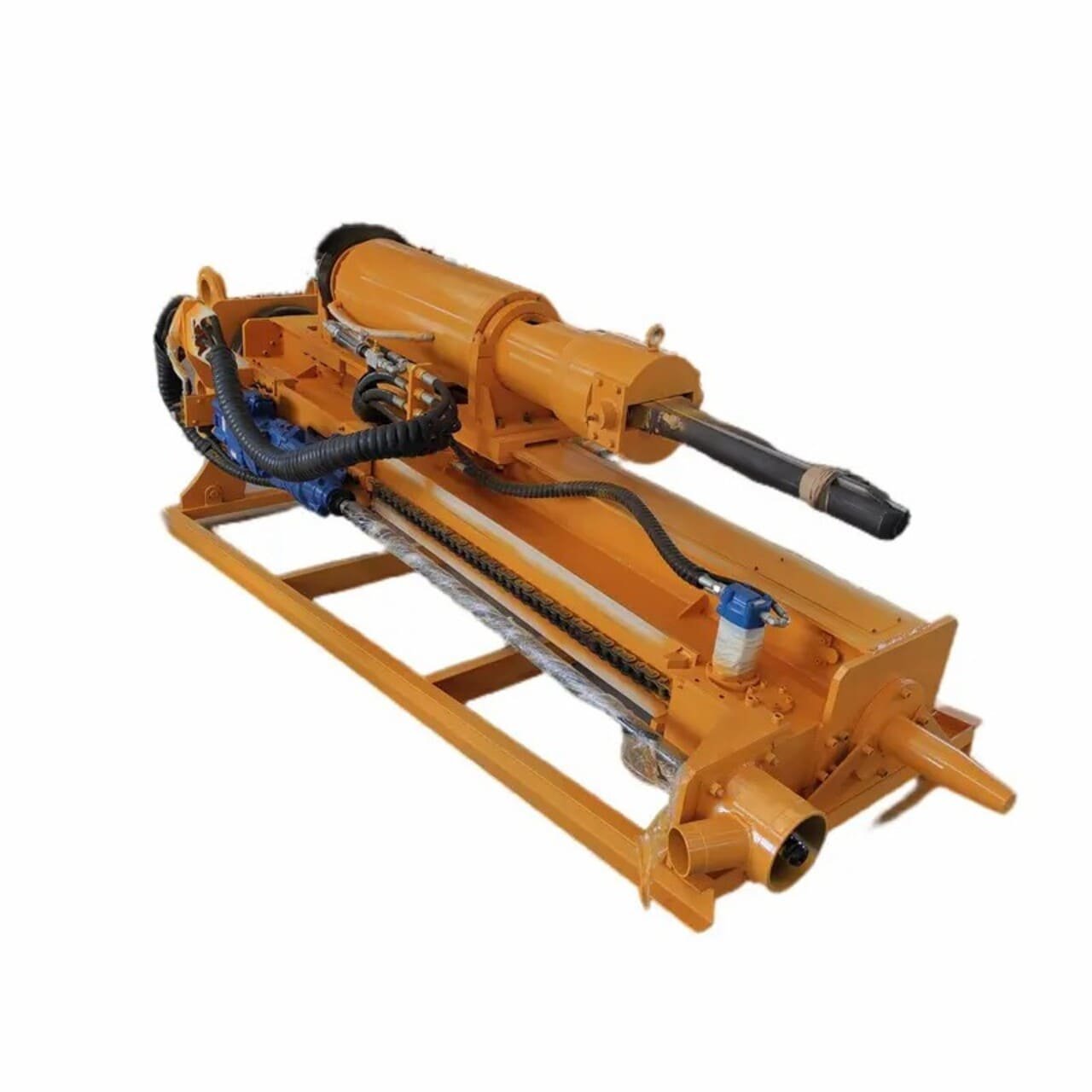

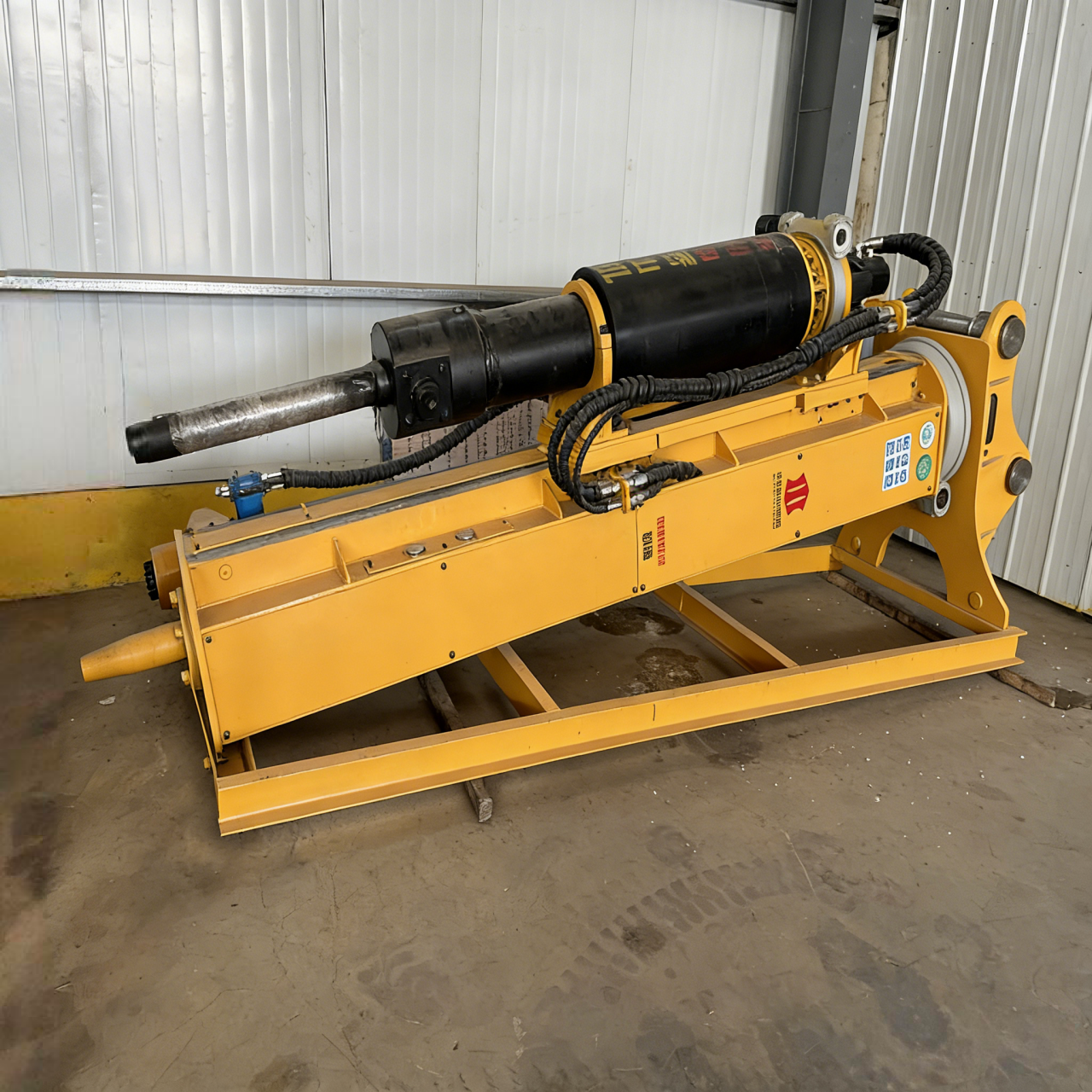

Integrated drilling and splitting machine

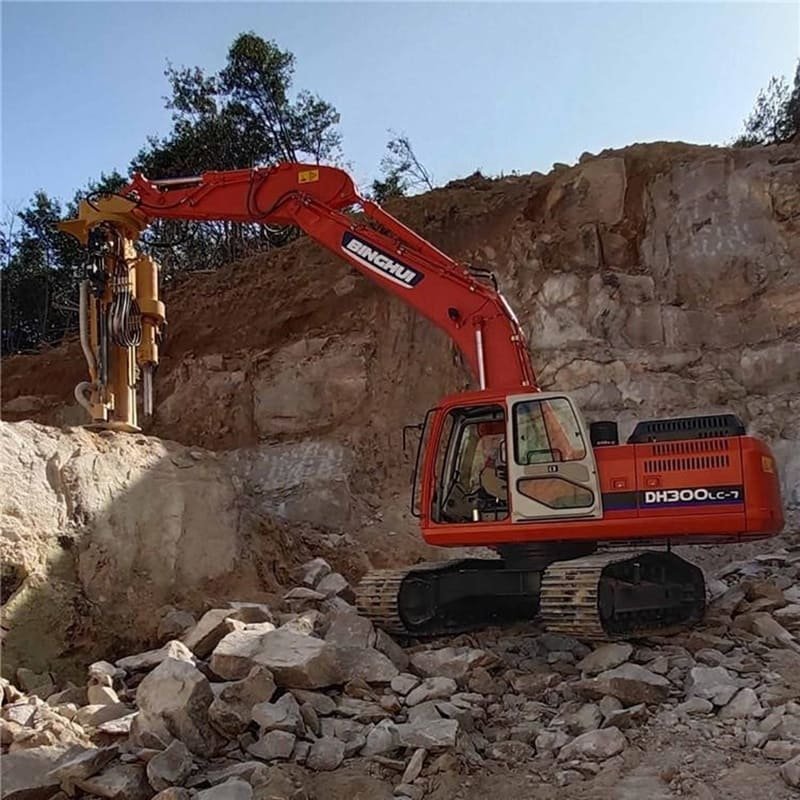

Integrated hydraulic drilling and splitting machine is an advanced non-blasting rock-breaking equipment, perfectly integrating rock drill and splitter with excavator. Adopting the excavator’s hydraulic oil source and equipped with a dedicated electro-hydraulic control system, it features fast drilling speed, ultra-strong splitting force and flexible movement for multi-functional operation. It works stably on all-angle working faces, easily coping with complex construction environments and boosting rock-breaking efficiency significantly.
Certified:
ISO 9001
CE
Real-world Use Cases
Application Scenes
Core application scenarios:
1 Quarry stone block splitting & rock excavation
2 road/bridge foundation rock breaking
3 municipal engineering concrete structure demolition
4 mine tunnel & drift development
5 water conservancy dam foundation treatment
6 geotechnical engineering slope trimming.
Related Applications

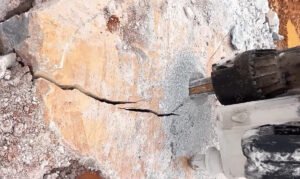

Fujian Granite Static Quarrying Case | Integrated Drill & Splitter Solves Compliance Issues Near Residential Areas
1. Project Challenge: Restrictions on Traditional Mining Methods The quarry is adjacent to residential zones. Standard hydraulic breakers generate 105–110...
Learn More
How It Works
Product Principle

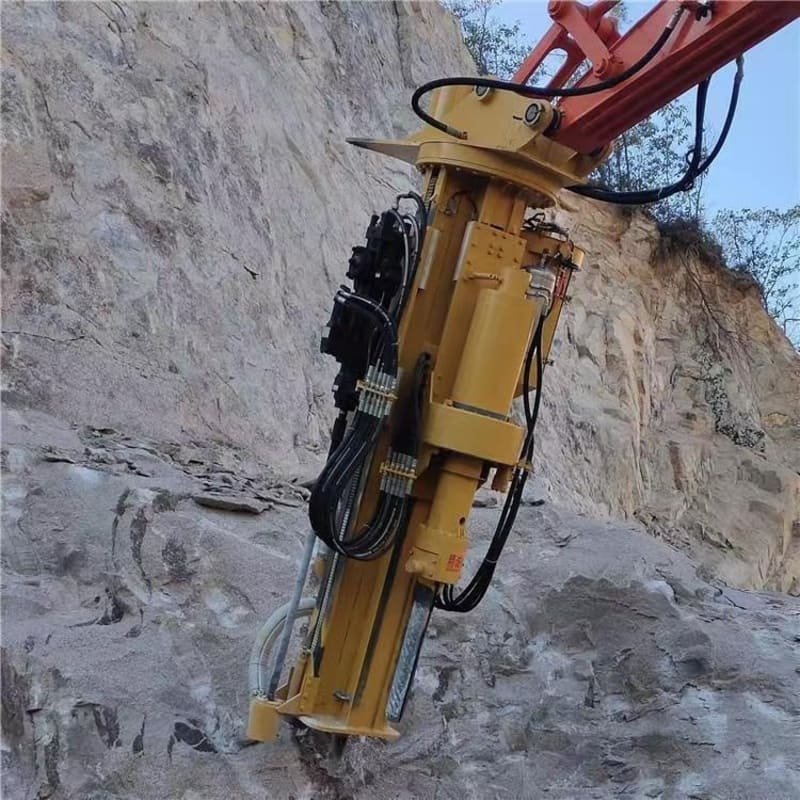

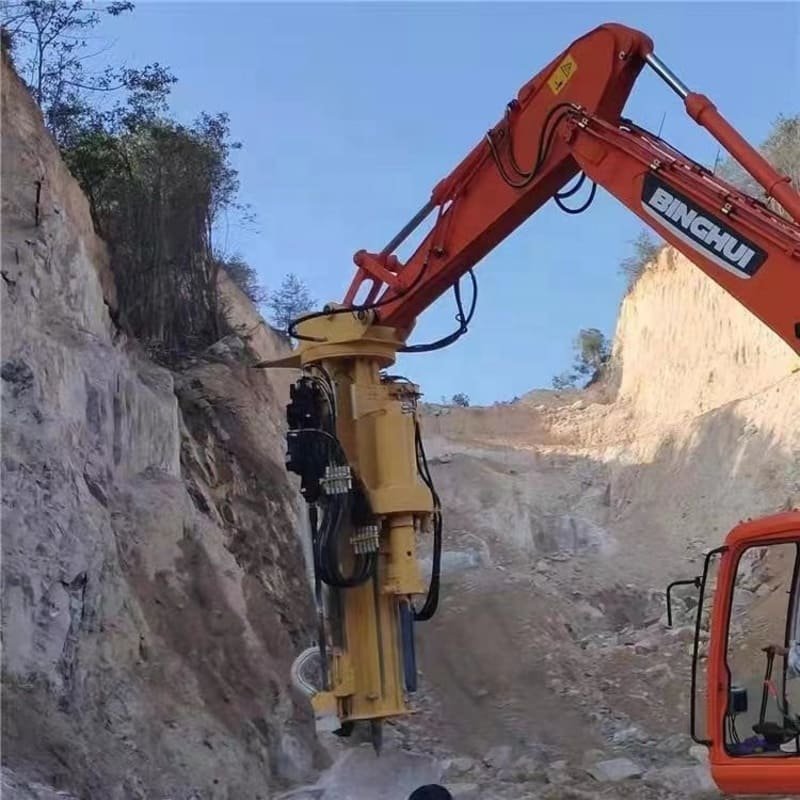

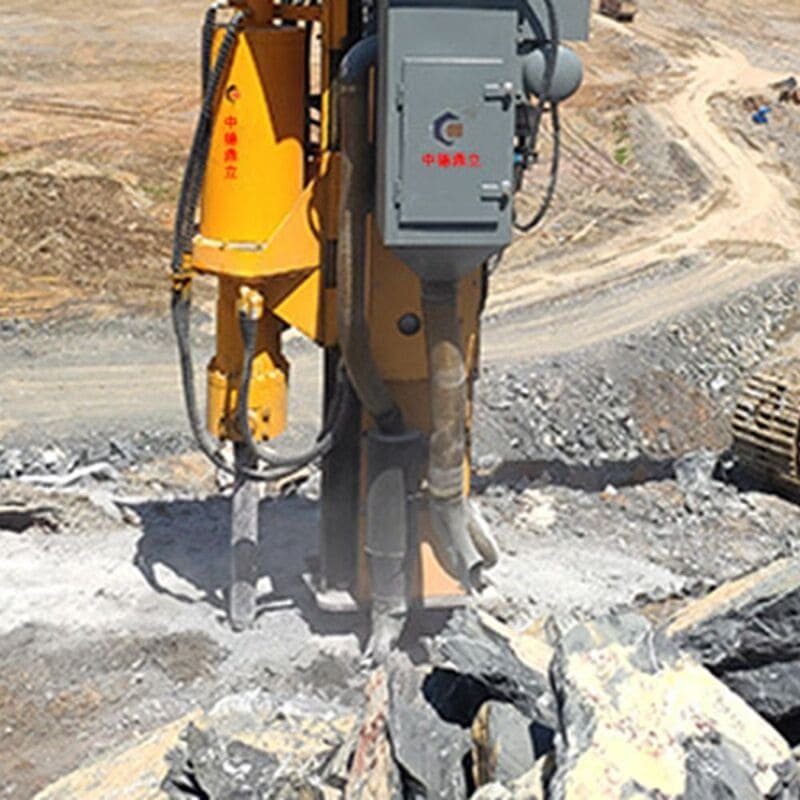

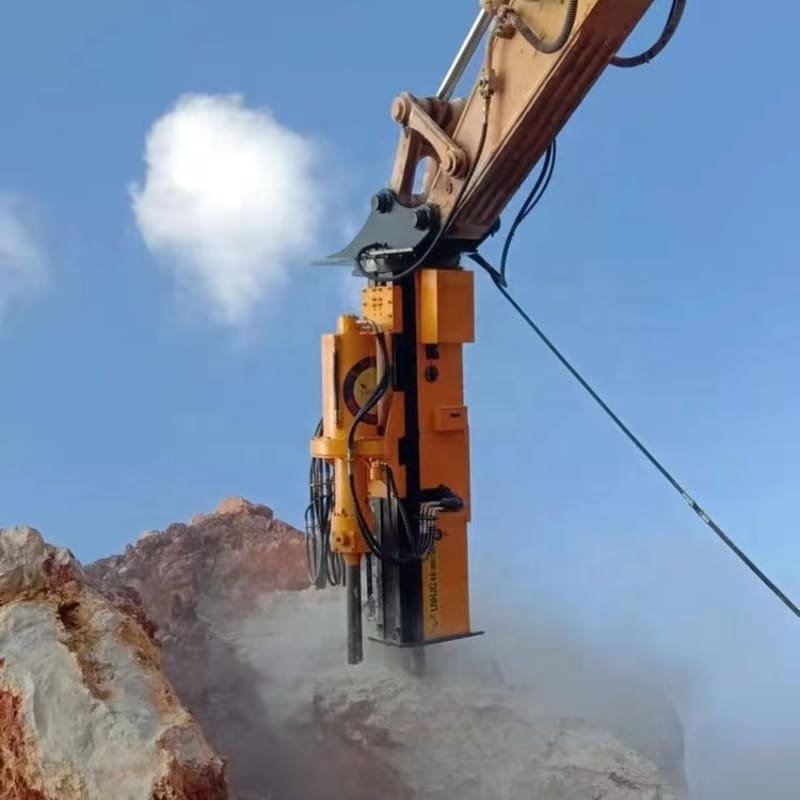

Powered by the excavator’s hydraulic system, the machine first drives the drilling unit to drill precise holes in rock/concrete at the preset position via full hydraulic power (1m/min high efficiency). After drilling, the splitting unit is automatically switched to work; its automatic pressurization system generates ultra-strong splitting force, and with 360° rotatable & multi-angle adjustable design, the splitting head exerts force on the hole inner wall to split the rock/concrete from the inside. The whole process is controlled by wireless remote control, with automatic dust removal for eco-friendly, non-blasting operation.
Why Choose Us

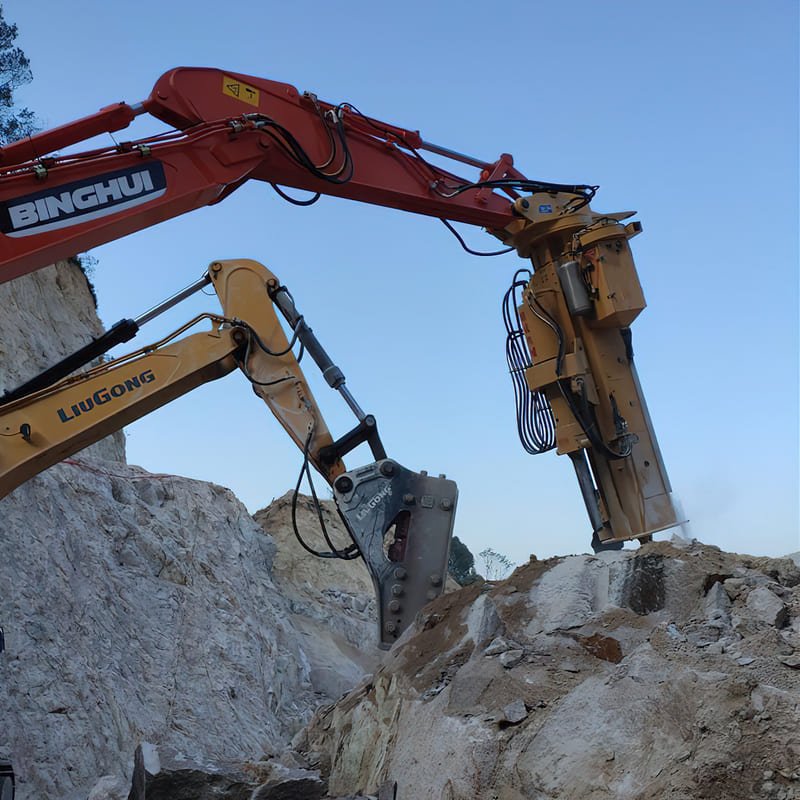

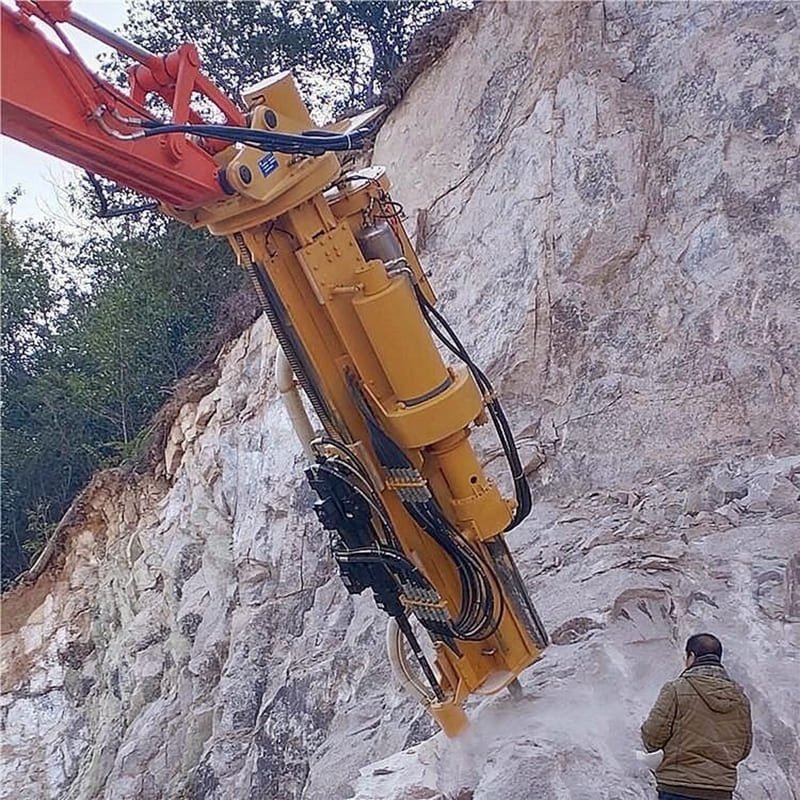

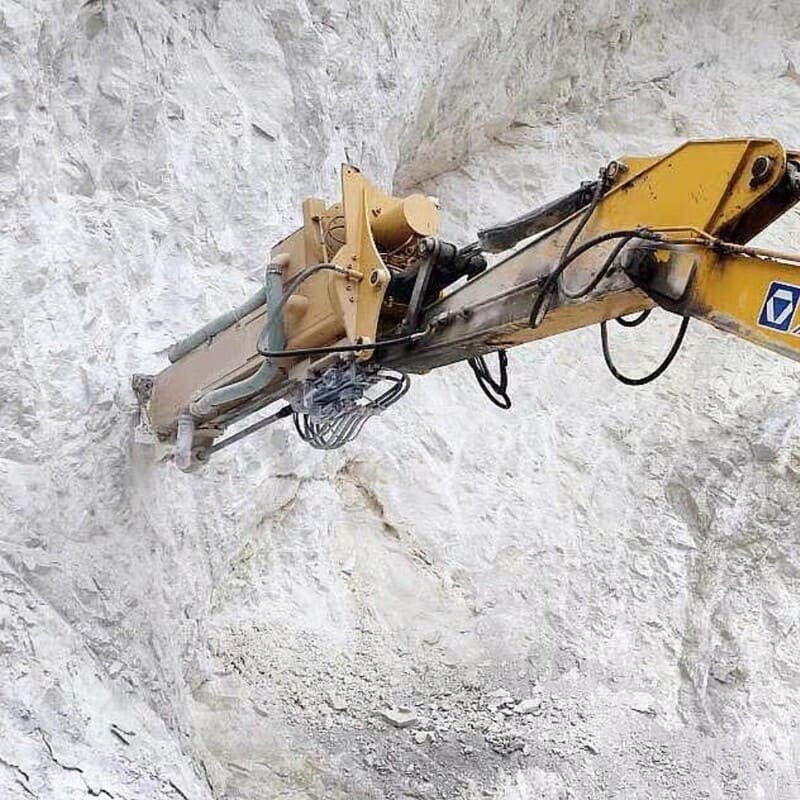

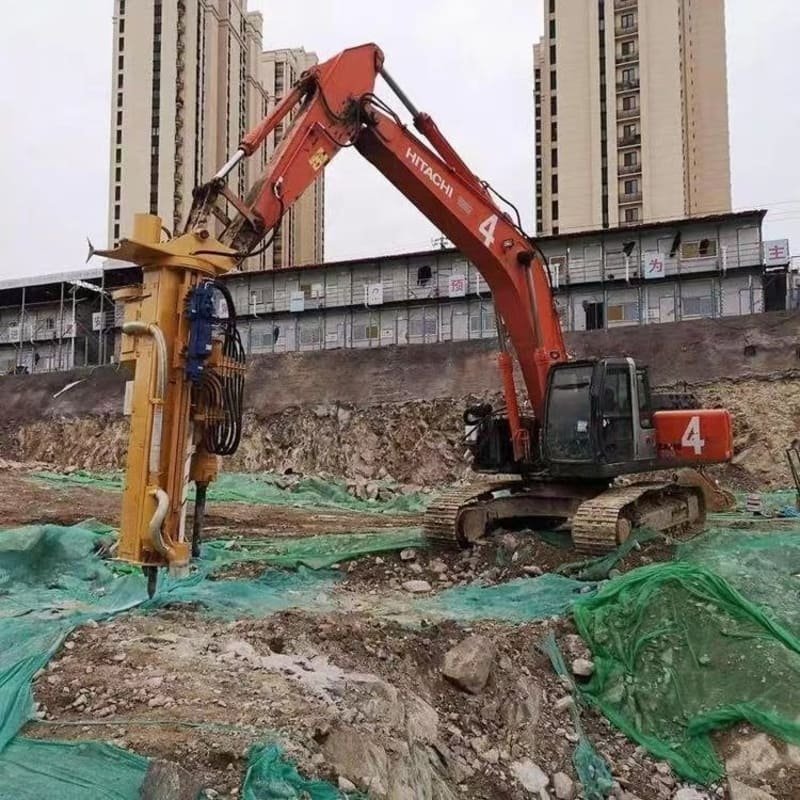

Product Advantage

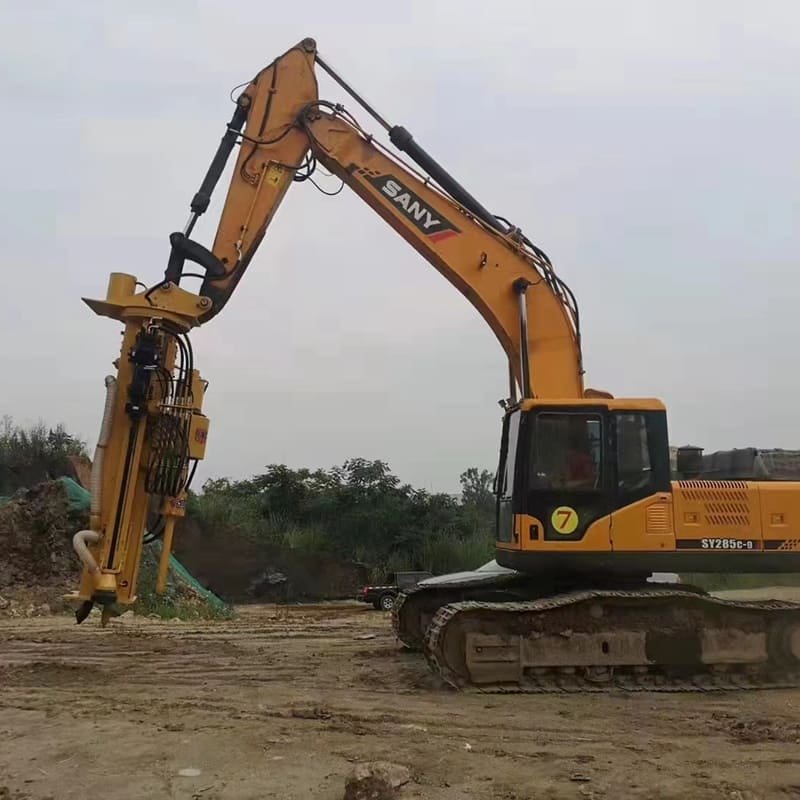

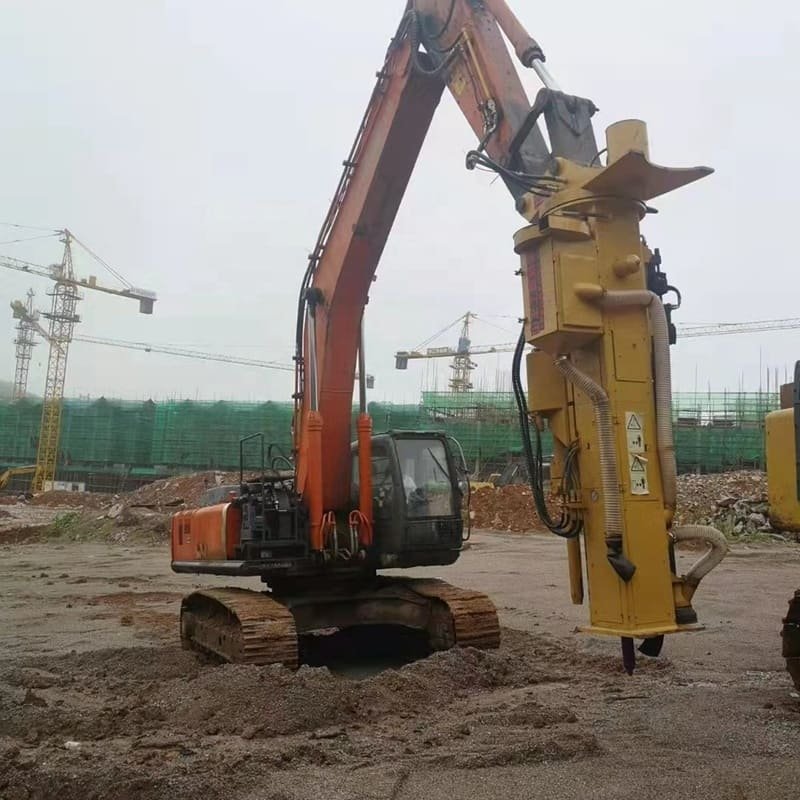

1 Integrated drill, splitter & excavator for all-in-one efficiency
2 Pin-shaft installation for quick equipment replacement
3 360° rotation, free control of splitting direction
4 Multi-angle operation: vertical, inclined & horizontal
5 Full hydraulic drill, 1m/min high drilling efficiency
6 Auto pressurization system for ultra-strong splitting force
7 Auto dust removal, eco-friendly construction
8 Wireless remote control, safe & fast operation
9 Non-blasting operation, zero flying stones & low vibration
10 Stable performance, adaptable to complex construction sites
11 Low energy consumption, reduced construction costs
12 Durable structure, long service life & easy maintenance
Data Sheet
Technical Specifications
| Model | Unit | DL115 | DL152 | -- | -- | -- | -- |
|---|---|---|---|---|---|---|---|
| Length*width*height | mm | 3900*1300*1050 | 5000*1500*1200 | -- | -- | -- | -- |
| Total weight | Kg | 3350 | 5500 | -- | -- | -- | -- |
| Drilling diameter | mm | 115 | 152 | -- | -- | -- | -- |
| Drilling depth | mm | 1700 | 2200 | -- | -- | -- | -- |
| Drilling speed | mm/min | 500-1200 | 1000-1200 | -- | -- | -- | -- |
| Splitting time | s | 7 | 7 | -- | -- | -- | -- |
| Splitting diatance | mm | 30 | 45 | -- | -- | -- | -- |
| Splitting force | mpa | 500 | 800 | -- | -- | -- | -- |
| Max working flow | L/min | 250 | 300 | -- | -- | -- | -- |
| Matching excavator | t | ≥25 | ≥45 | -- | -- | -- | -- |
