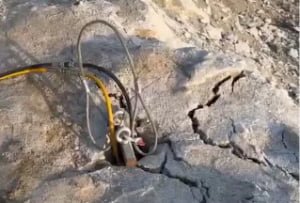

Foundation Excavation Case: Granite Breaking with 6 DL130 Piston Rock Splitters
During foundation excavation in Zhejiang, the contractor encountered hard granite rock. Pneumatic picks were slow and inefficient, while blasting was...
Learn More

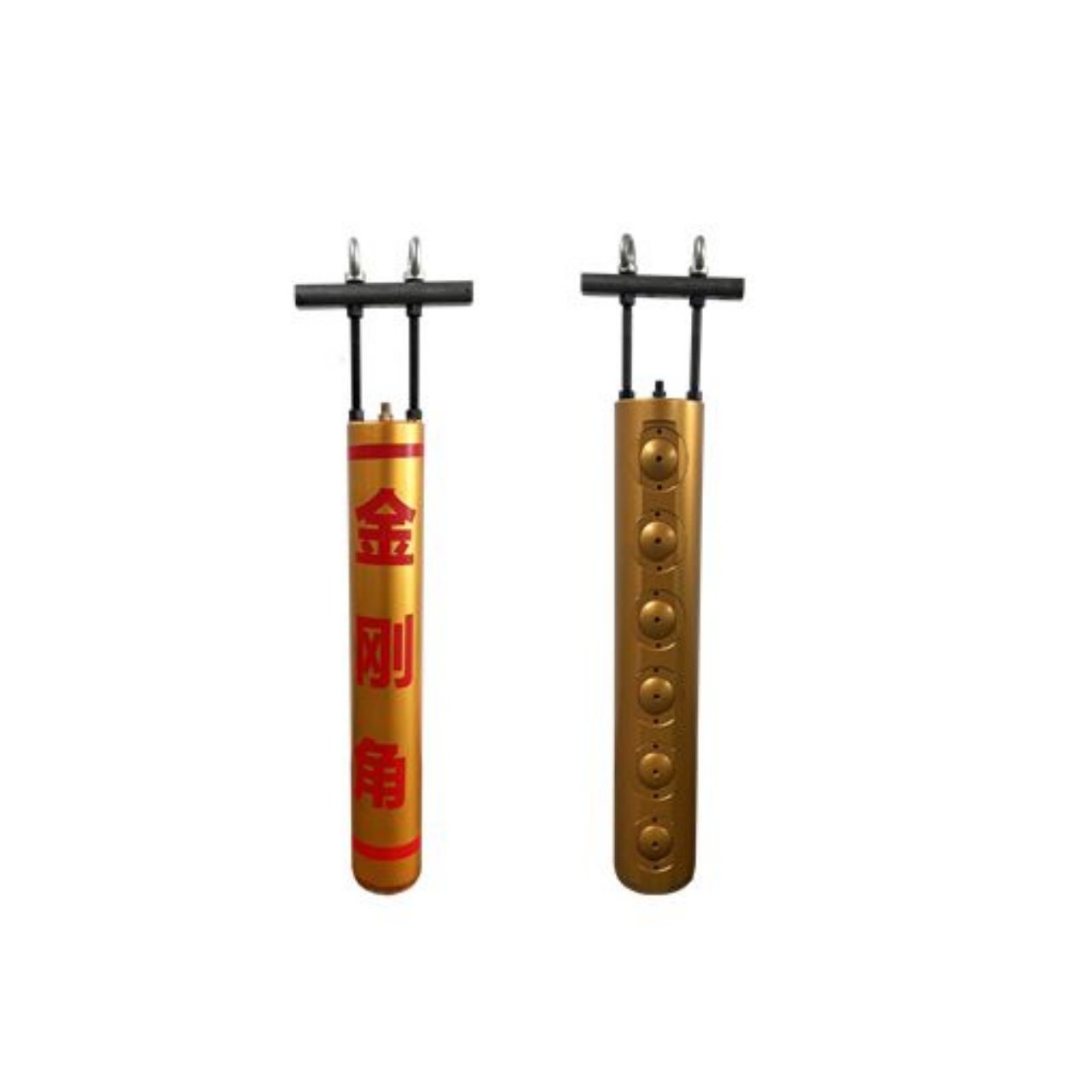

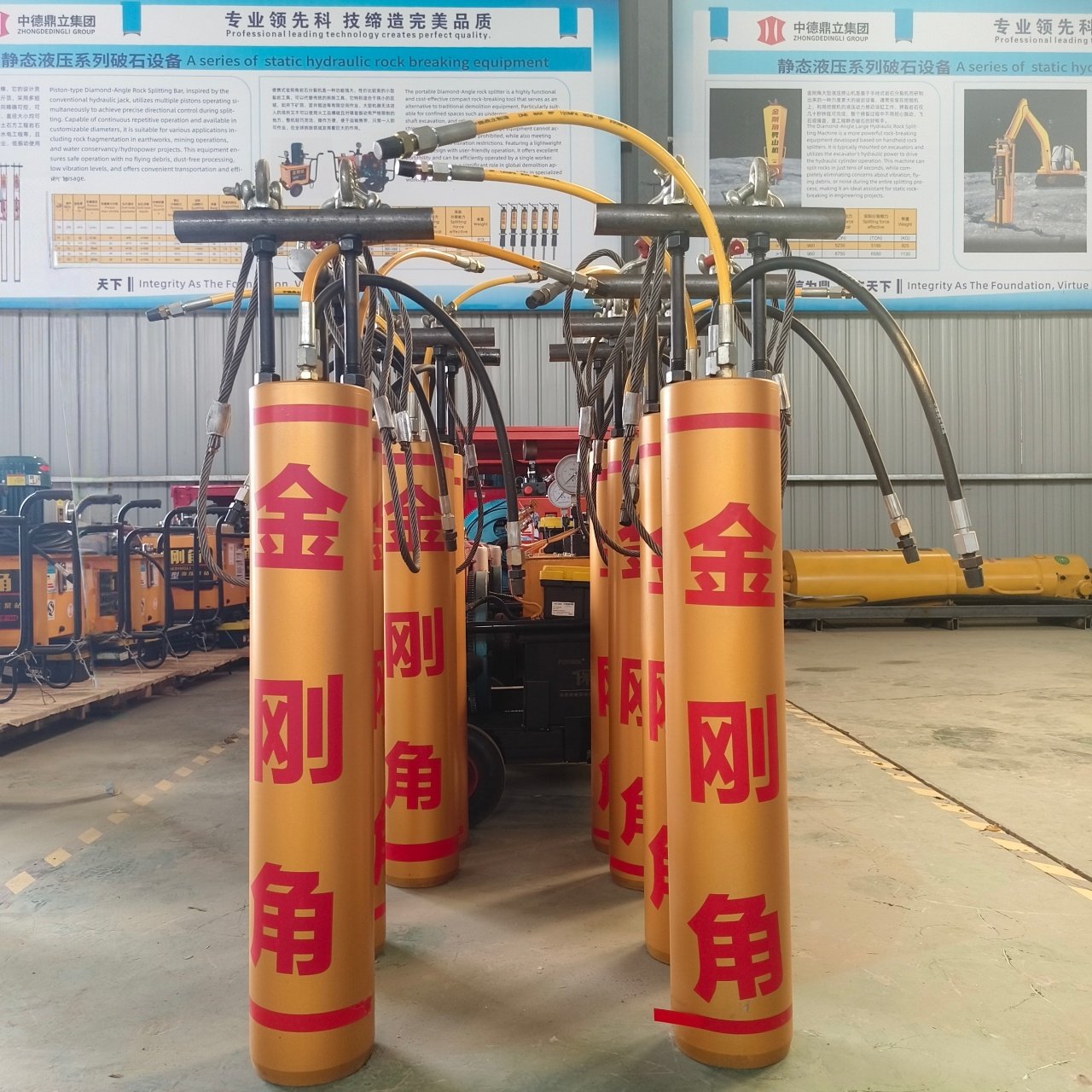

Piston rock splitter
Piston rock splitter is a new-generation rock-breaking device inspired by hydraulic jack design. Targeting the limitation of handheld wedge splitters in large-scale rock removal, it’s the optimal solution for such projects. Boasting far greater power and higher efficiency than handheld wedge types, it perfectly meets the demands of large-scale rock-breaking construction with stable and reliable performa.
Certified:
ISO 9001
CE

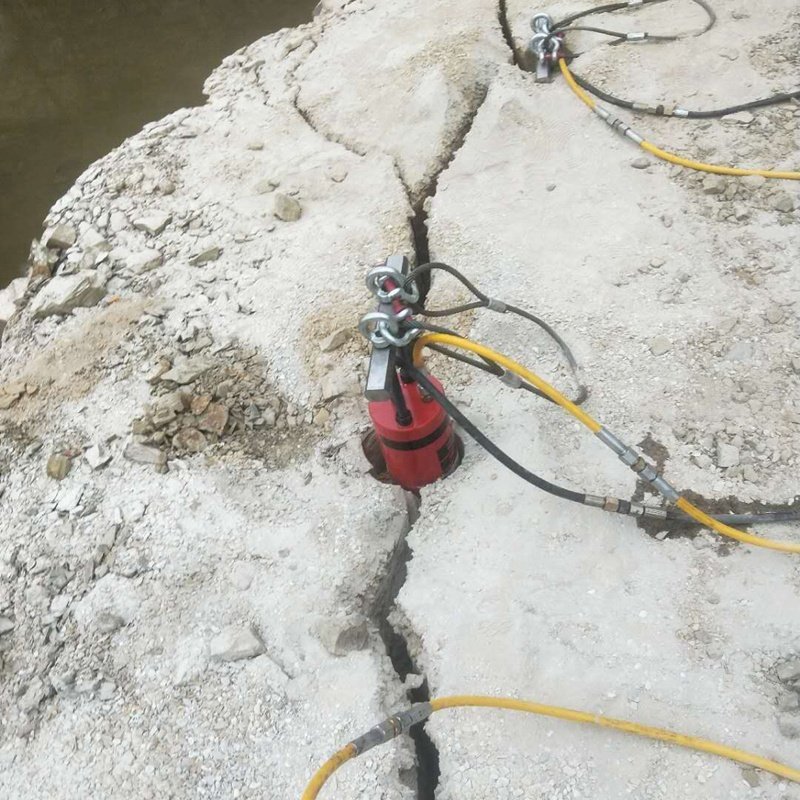

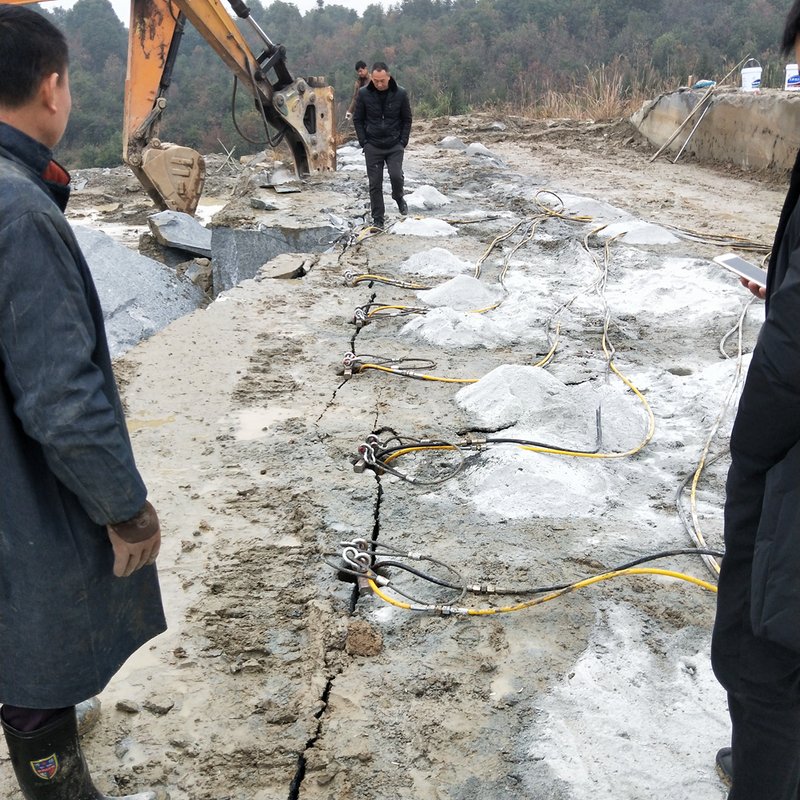

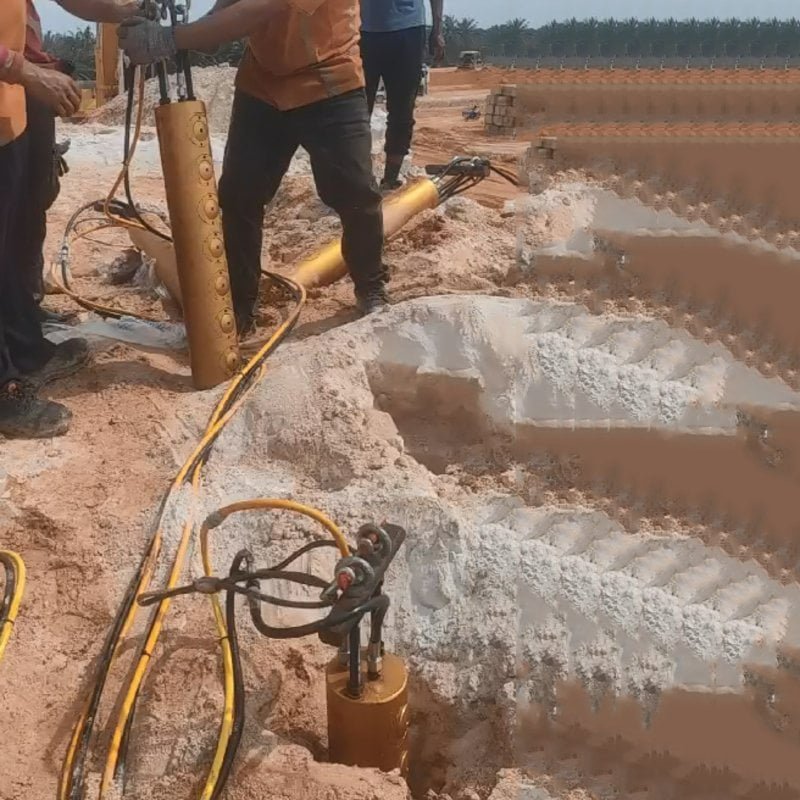

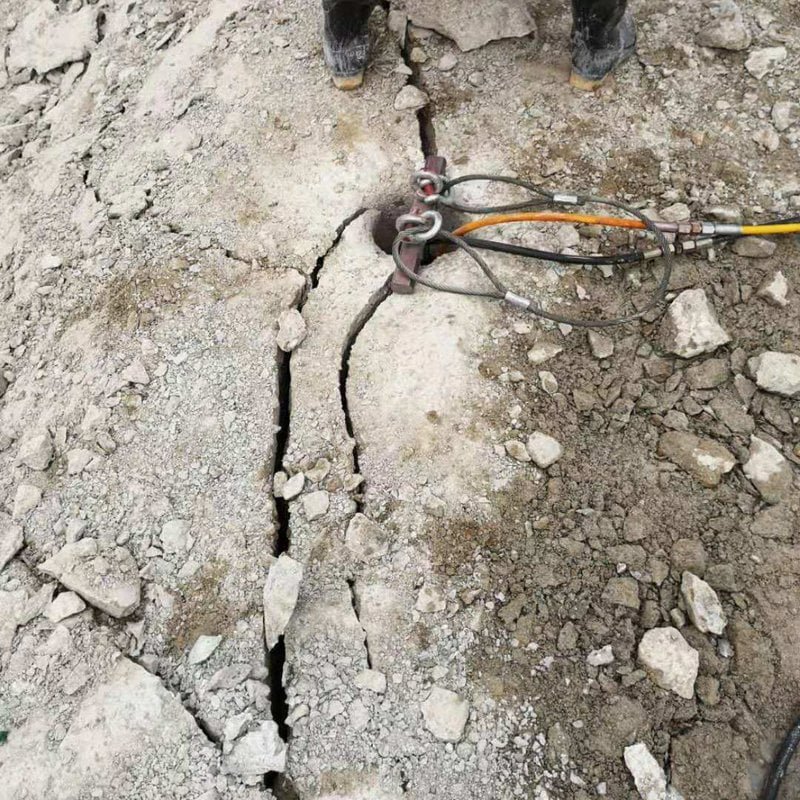

Real-world Use Cases
Application Scenes
The core application scenarios are static demolition of hard rock/concrete works with strict restrictions on vibration, dust and noise, replacing traditional blasting and hydraulic breakers. Typical fields include：
1 mine mining,
2building demolition,
3municipal construction and emergency rescue, especially suitable for special environments such as cities, protected areas and precision factories.
Related Applications

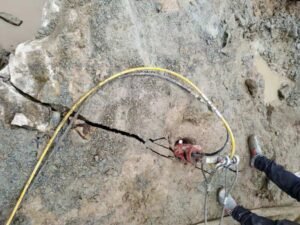

DL130 Hydraulic Splitter Case: Solve Shale Excavation No-Blasting & Low Efficiency Problems
1. Site Problems & Pain Points A Fujian construction team faced tough foundation excavation challenges with large-area carbonaceous shale. Blasting...
Learn More
How It Works
Product Principle

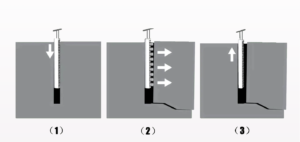

Concrete and rock possess highly anti-compressive strength but lowly tensile strength.Therefore,piston rock splitters exploy the feature. The hydraulic pump station drives the piston inside the splitting rod to extend outward, which expands and cracks the rock. With the splitting force thousands of tons, it is easy to split hard rock from the interior in approximately two minutes and ensure the object splits in the predetermined direction.

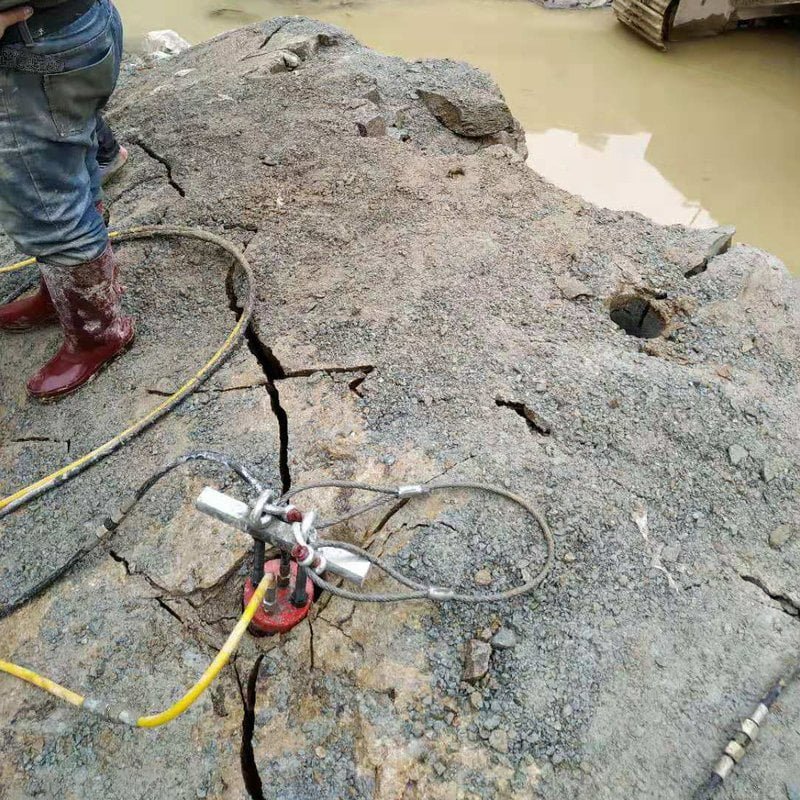

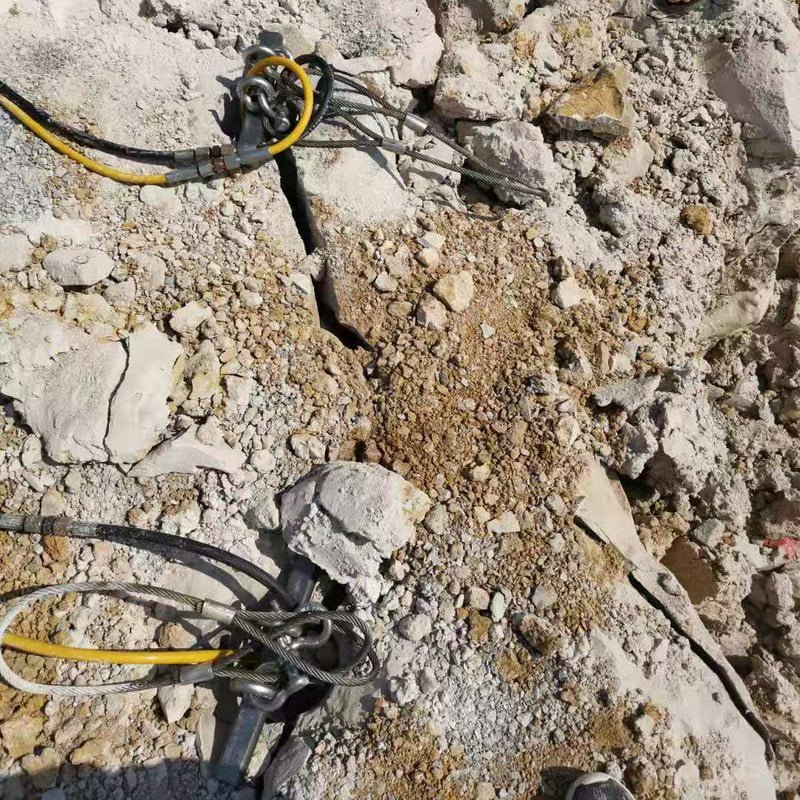

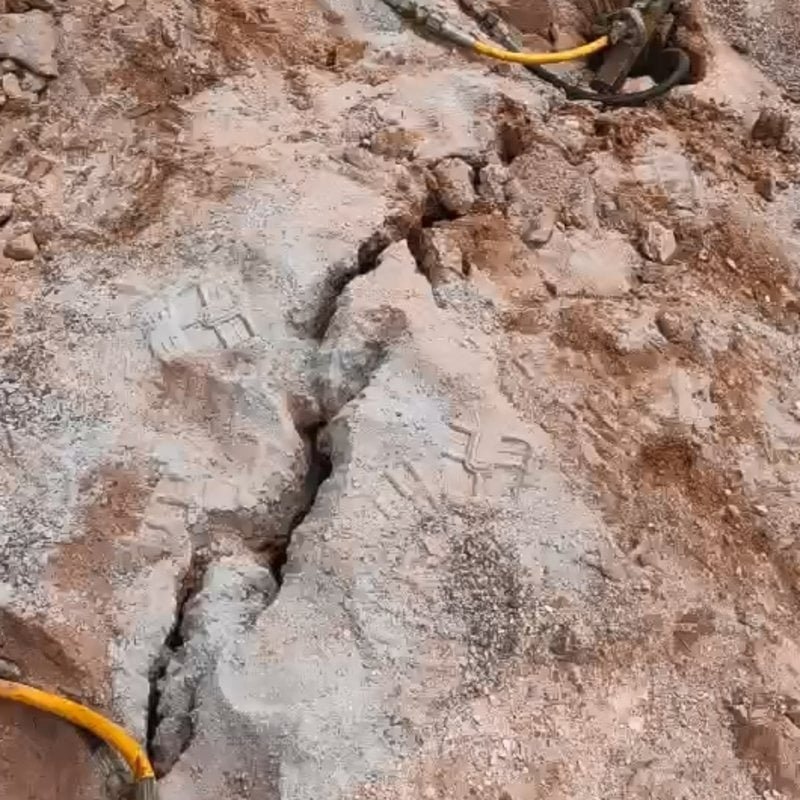

Why Choose Us

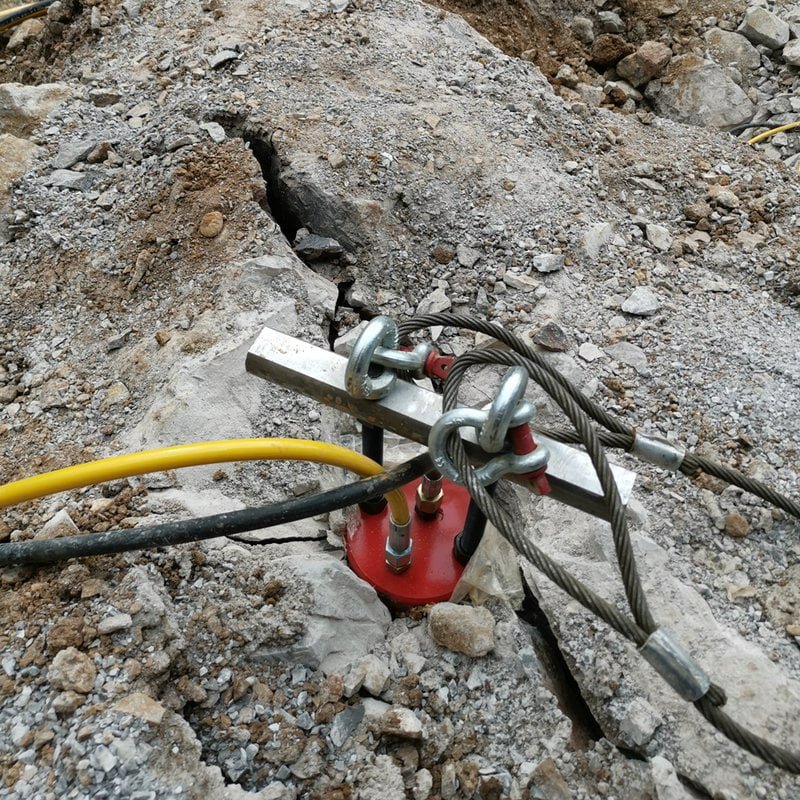

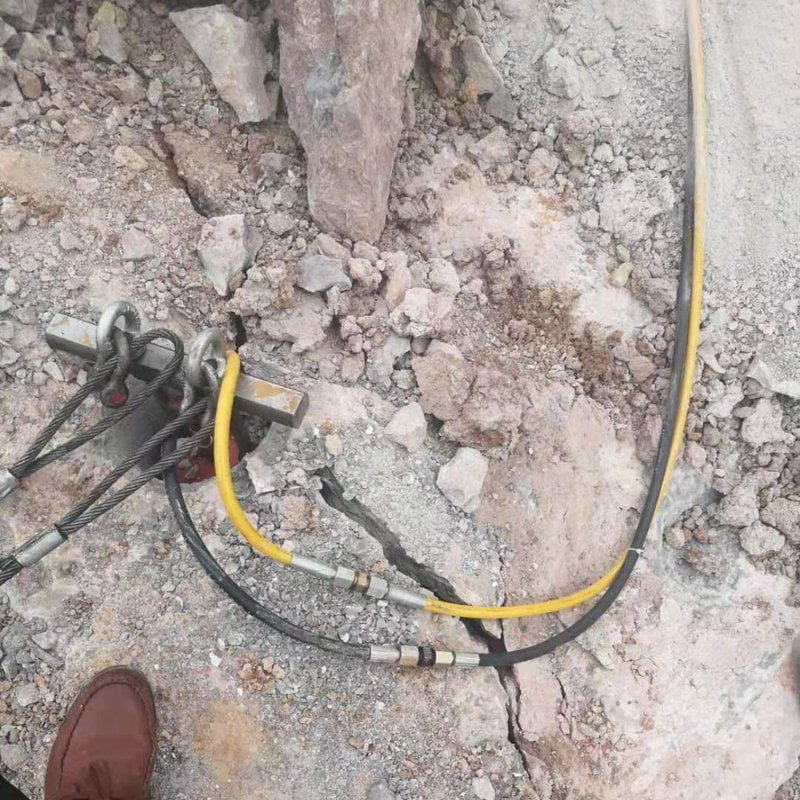

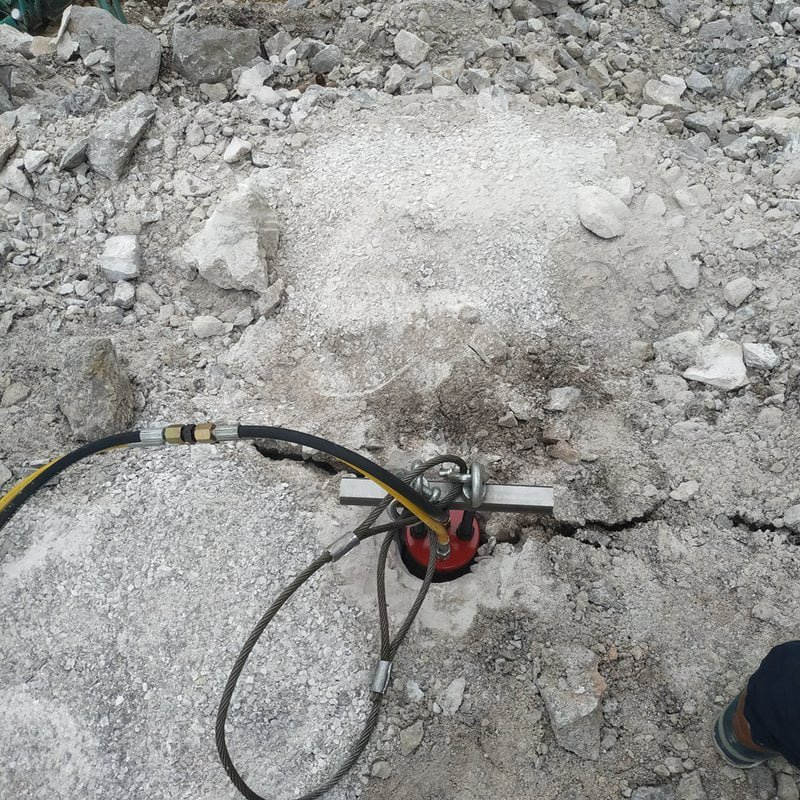

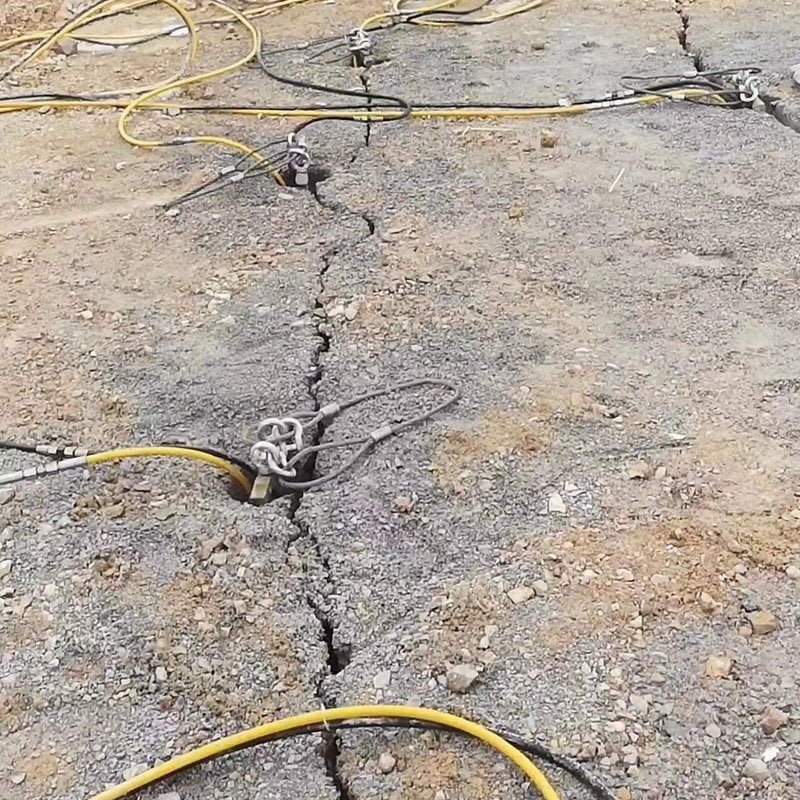

Product Advantage
1 Ultra-high pressure, strong splitting force 1500-4000t
2 Universal application, high adaptability
3 Fit for large rock-breaking projects
4 Higher rock-breaking efficiency
5 No noise 50dB-70dB, safe & eco-friendly
6 Single operation, easy to use
7 Wear-resistant, low maintenance cost
8 Precision control, no peripheral damage
nor
Data Sheet
1
Technical Specifications
| Model of piston rock splitter | Unit | DL-90 | DL-110 | DL-130 | DL-150 | DL-180 | DL-220 |
|---|---|---|---|---|---|---|---|
| Diameter | mm | 85 | 105 | 125 | 145 | 175 | 215 |
| Lenghth | mm | 640 | 720 | 750 | 780 | 1020 | 1120 |
| Piston diameter | mm | 50 | 60 | 70 | 80 | 100 | 110 |
| Piston max strock | mm | 25 | 34 | 38 | 48 | 56 | 70 |
| Drilling diameter | mm | 90 | 110 | 130 | 150 | 180 | 220 |
| Drilling depth | mm | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Theoretical splitting force | Ton | 1580 | 2160 | 2550 | 3070 | 3680 | 4210 |
| Effective splitting force | Ton | ≈1500 | ≈2000 | ≈2400 | ≈2900 | ≈3500 | ≈4100 |
| Weight | Kg | 31 | 46 | 78 | 95 | 127 | 213 |

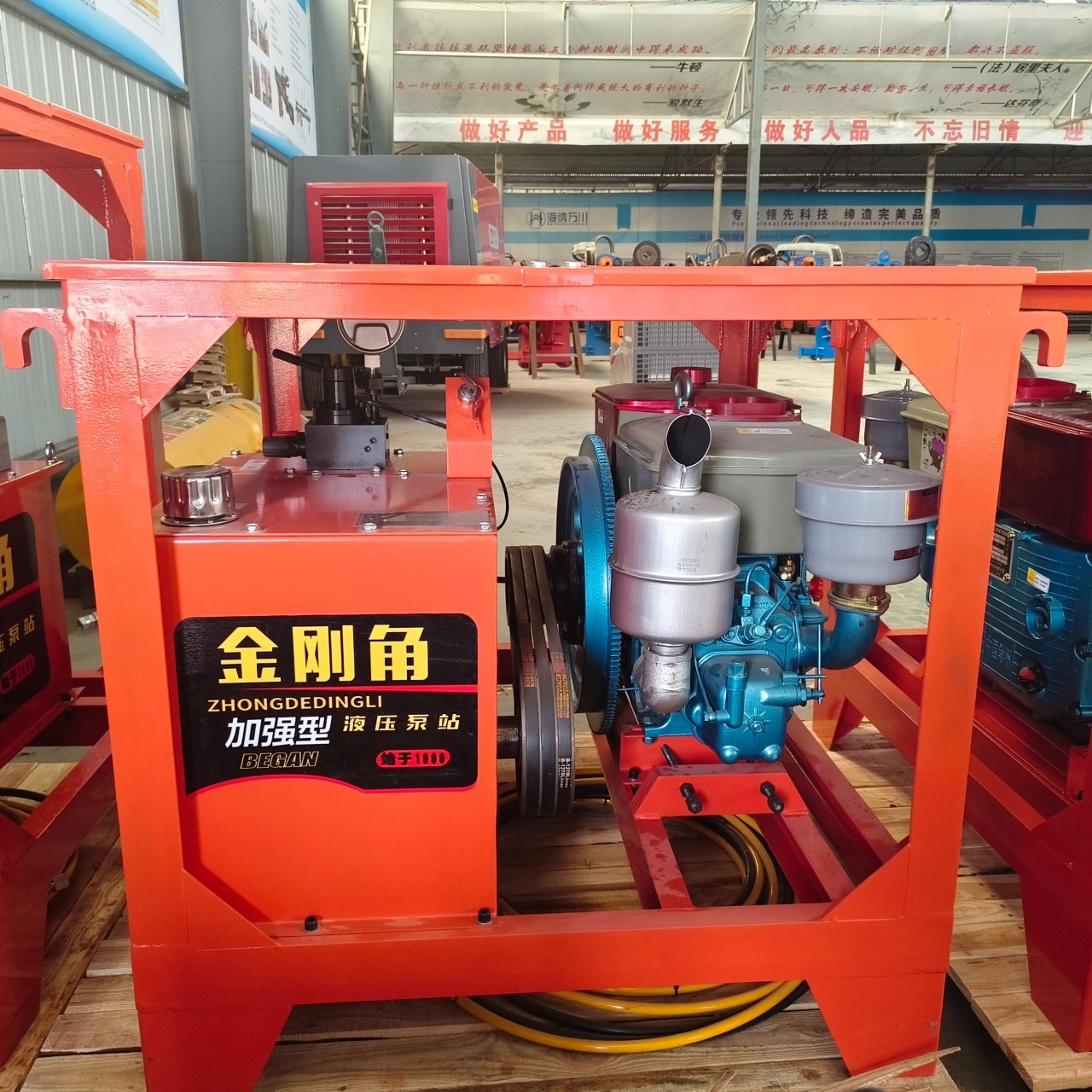

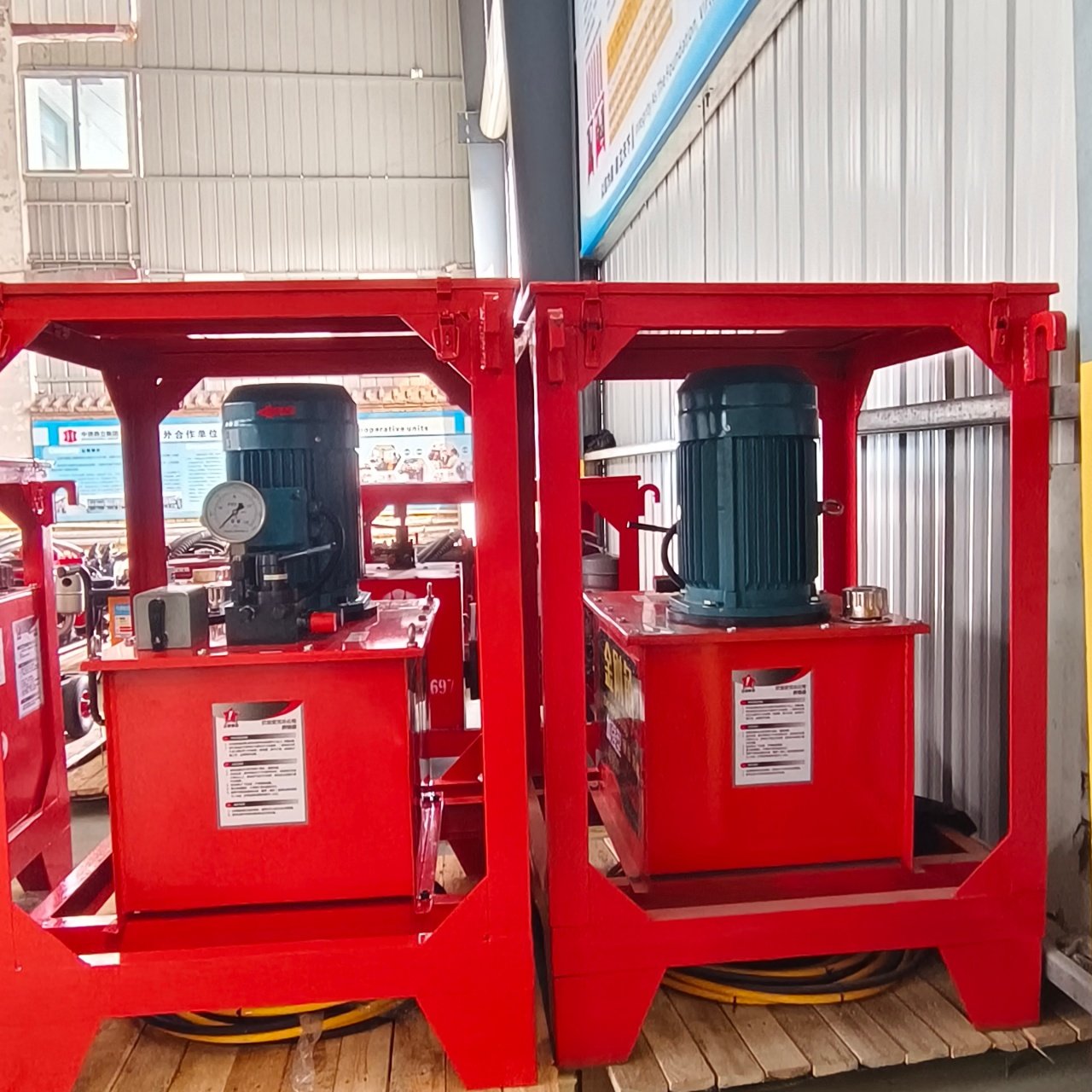

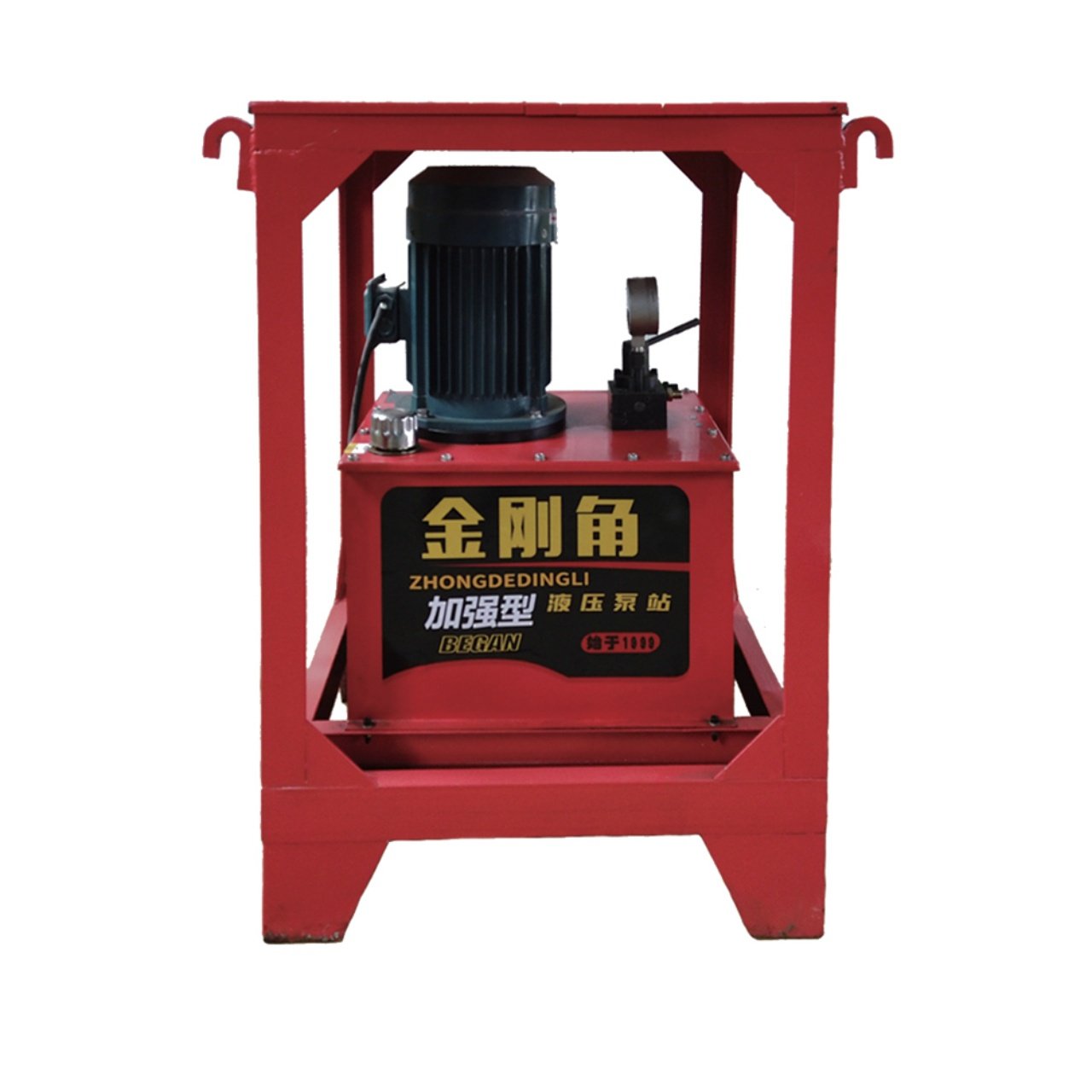

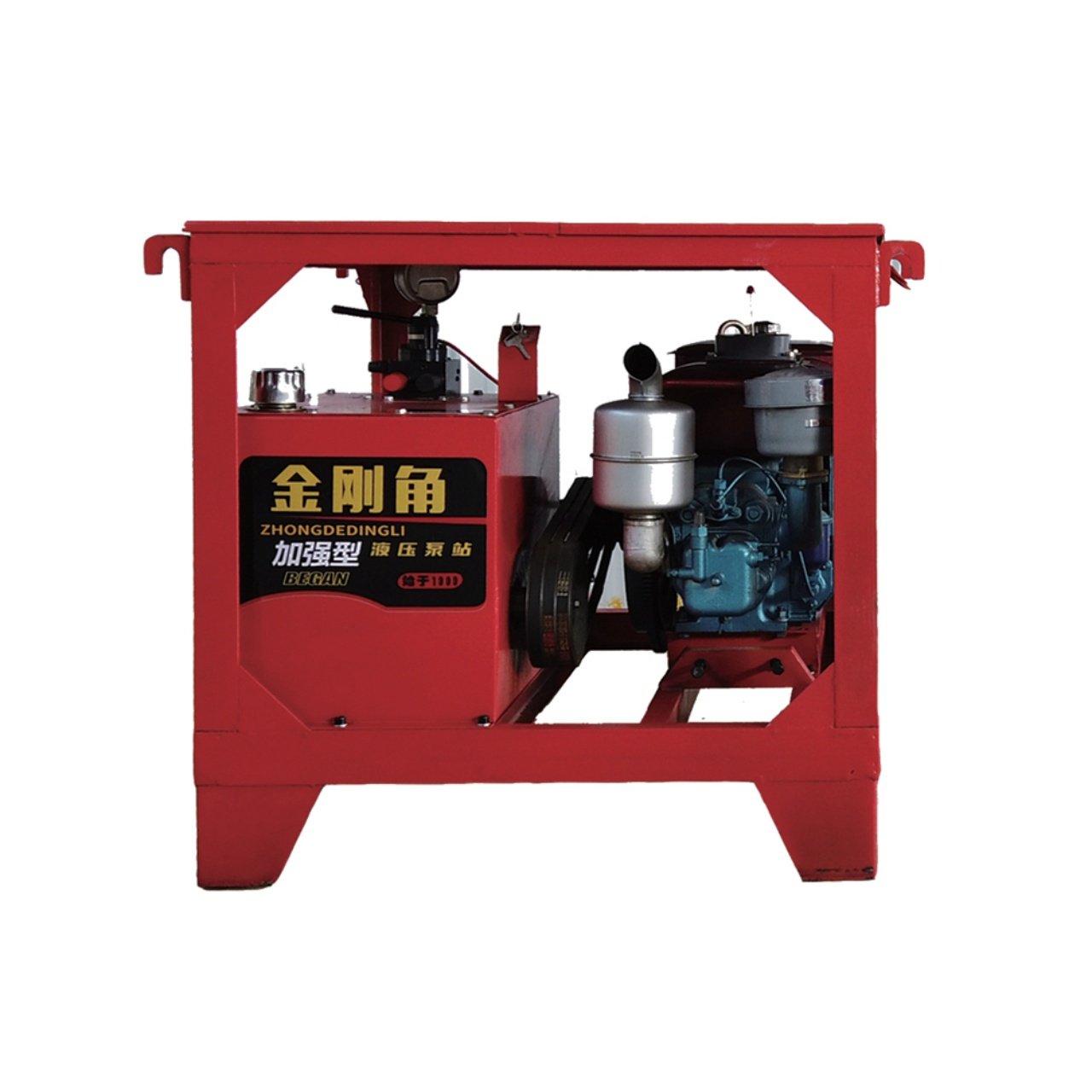

| Pump Type | Diesel | Electric |
|---|---|---|
| Power | 15HP | 7.5w |
| Rated pressure | 100Mpa | 100Mpa |
| Peak pressure | 150Mpa | 150Mpa |
| Low pressure flow | 10L/min | 8L/min |
| High pressure flow | 4.5L/min | 3,8L/min |
| Operation temprature | -20-85℃ | -20-85℃ |
| Oil tank volume | 100L | 100L |
| Diesel tank volume | 10L | / |
| Weight | 315Kg | 185Kg |
| Dimention | 1100*1015*980mm | 950*830*1250mm |
