Where Can a Hydraulic Rock Splitter Be Used?
I've seen purchasing managers flip through product brochures, nod at "quarries, tunnels, demolition," and then ask the real question: "But will it work here, in this situation?" Industry labels tell you nothing. Rock splitters don't fit industries—they fit constraints.
Rock splitters are used wherever measurable site restrictions—vibration limits, spatial access barriers, explosive permit prohibitions, or stone integrity requirements—make hydraulic splitting more viable than blasting or mechanical excavation. The binding constraint at your site, not the industry name, determines whether splitters replace conventional methods and which configuration fits your work sequence.
Here's how I help customers map their actual constraints to equipment selection—not industry labels, but the physical and regulatory thresholds that force them to consider splitters in the first place.

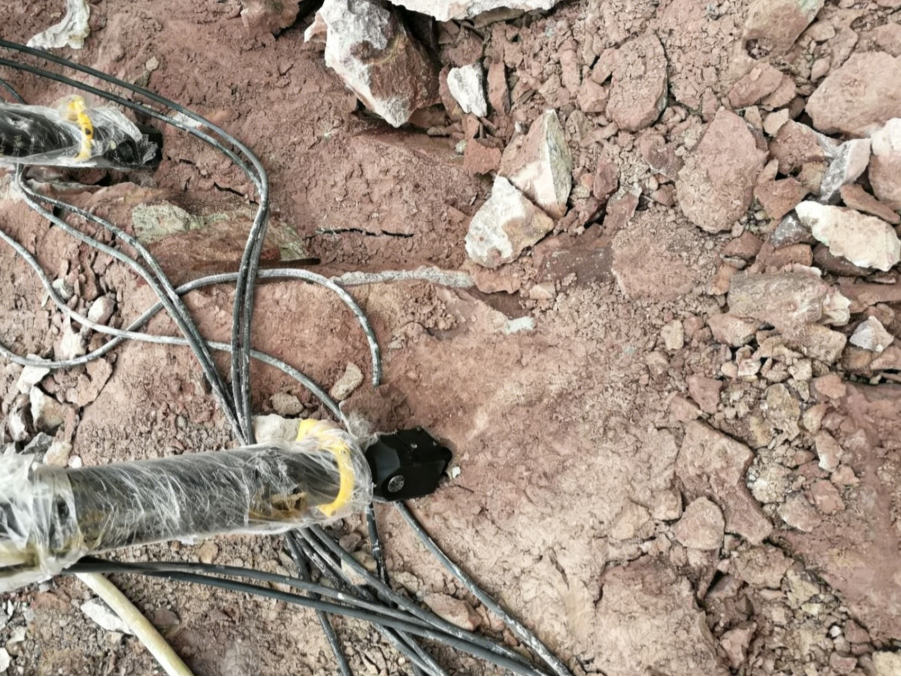

When Does Vibration Restriction Drive the Selection?
Customers call asking, "Can splitters work in quarries?" My first question: "Do you have structures within 200 meters1?"
Splitters eliminate ground vibration. That matters only when you're operating near residential zones, historical buildings, or active infrastructure where monitoring equipment enforces <5mm/s thresholds2. I've worked with quarry operators in Southeast Asia who switched to piston splitters for final block trimming—not because blasting stopped working, but because blast-induced micro-fractures reduced the percentage of premium-grade stone blocks3 they could sell.
Vibration matters when:
- Structural monitoring systems trigger stop-work orders above regulatory limits
- Stone product specifications penalize internal fractures caused by blast waves
- Urban expansion brings sensitive receptors within damage risk radius
If your site has no enforced vibration thresholds and no revenue penalty for micro-fractures, zero-vibration capability is technically accurate but commercially irrelevant.

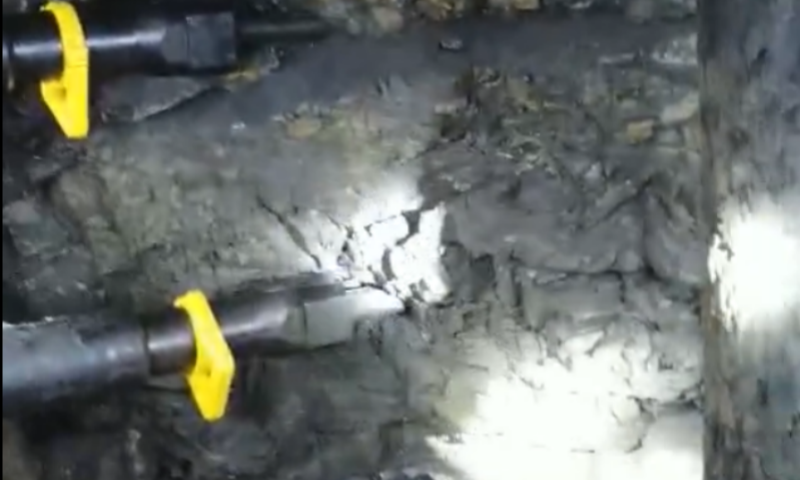

When Does Spatial Limitation Make Splitters Necessary?
Access width determines equipment fit faster than rock hardness.
Metro tunnel contracts in Middle Eastern cities specify <3-meter heading widths4. Drilling rigs for conventional blast patterns don't fit. Handheld rock splitters do. I've seen engineering contractors specify integrated drill-split units for mountain highway tunnels where advance rate targets allow sequential hole drilling and splitting—same tunnel application, completely different constraint.
Spatial boundaries that favor splitters:
- Confined rescue access where excavator positioning is impossible
- Tunnel cross-sections too narrow for jumbo drill rigs
- Urban demolition sites where crane reach excludes heavy machinery
If your site accommodates standard drilling equipment and excavator access, portability advantages shrink to logistical convenience, not technical necessity.
When Do Permit Restrictions Force Technology Substitution?
Belt and Road markets increasingly restrict explosive permits in populated corridors5. That's regulatory constraint, not geological preference.
A mining contractor in Africa asked if rock splitters could replace detonation for overburden stripping near a refugee settlement6. Rock splitters become economical when explosive licensing delays exceed the cost penalty of lower advance rates.
Permit-driven selection applies when:
- Local governments ban explosives within defined radii of sensitive sites
- Project timelines cannot absorb explosive permit approval wait times
- Insurance costs for blast operations exceed splitter rental premiums
If your site allows conventional blasting without regulatory friction,rock splitters are an alternative method, not a mandated solution.
When Does Stone Integrity Define Product Value?
Precision control matters only when block waste directly impacts revenue.
Dimension stone quarries in Southeast Asia pay 30–50% premiums for intact blocks over crushed aggregate. Splitters allow controlled fracture plane propagation7 that preserves stone integrity—but that advantage converts to ROI only when product mix includes high-value cut stone. For aggregate production or rock clearance, precision is operationally neutral.
Integrity-driven scenarios:
- Marble and granite dimension stone extraction where fracture patterns determine grade classification

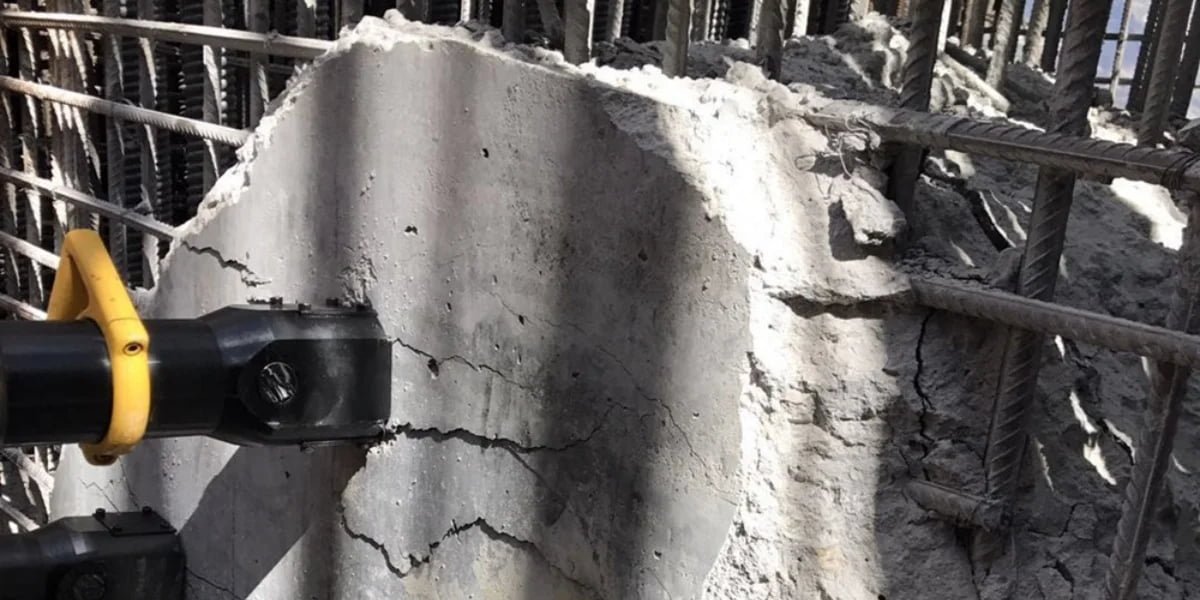

- Concrete demolition requiring rebar exposure without damaging adjacent structural elements
- Foundation excavation where over-break triggers costly backfill and re-compaction
If your material ends up in a crusher regardless of fracture quality, precision splitting adds capability without margin improvement.
Frequently Asked Questions
Do rock splitters work in all rock types?
Effectiveness depends on rock's tensile-compressive strength ratio8 and natural discontinuities. Splitters perform best in brittle, layered formations9—not massive, homogeneous rock requiring extensive pre-drilling. Verify splitting force specifications against your site's core sample data.
Can one splitter model handle quarrying and tunnel work?
No. Handheld units suit confined access; piston splitters handle high-volume stripping; CO₂ systems work in wet conditions. Configuration selection requires matching hole diameter, spacing, and cycle time to your work sequence—not picking a "versatile" device.
Are splitters more economical than blasting?
Only when regulatory or spatial constraints make blasting infeasible, or when stone integrity premiums offset slower advance rates. For bulk excavation in unrestricted sites, conventional methods remain cost-competitive. Calculate cost-per-cubic-meter including drilling labor, not just equipment rental.
What site data do I need before requesting quotes?
Rock hardness (UCS values10), working space dimensions, vibration/noise limits if monitored, required daily advance rate or production volume, and proximity to sensitive structures. Generic inquiries get generic responses—constraint-specific data gets equipment recommendations.
Conclusion
Rock splitters fit constraint-driven scenarios, not industry categories. Map your site's binding restrictions—vibration thresholds, spatial limits, permit barriers, or stone quality requirements—to equipment specifications before requesting proposals. At Meiger Machinery, we help purchasing managers translate measurable site conditions into splitter configuration criteria. If your constraints match static-hydraulic splitting advantages, we'll confirm it with specifications. If conventional methods still fit your economics, we'll tell you that too. Contact us with your site constraint data for configuration evaluation.
"Blasting Safety", https://www.msha.gov/safety-health/safety-health/safety-health-materials/safety-topics/blasting-safety. Blast engineering guidelines consider structure proximity when assessing vibration risk, with monitoring and mitigation commonly required within distances ranging from 100-500 meters depending on charge weight, geology, and structure sensitivity, supporting 200 meters as a representative threshold for concern. Evidence role: general_support; source type: education. Supports: typical distance considerations for blast vibration effects on structures. Scope note: Actual safe distances depend on blast design, geological conditions, and structure characteristics ↩
"FINAL REPORT EVALUATION OF VIBRATION LIMITS ...", https://rosap.ntl.bts.gov/view/dot/26681/dot_26681_DS1.pdf. Various national standards establish vibration limits for construction near structures, with thresholds commonly ranging from 2-10 mm/s depending on building type and condition, supporting the use of 5mm/s as a representative regulatory threshold. Evidence role: statistic; source type: government. Supports: typical regulatory vibration limits for protecting structures during construction operations. Scope note: Specific limits vary by jurisdiction and structure classification ↩
"Research on blasting cumulative dynamic damage of ... - PMC", https://pmc.ncbi.nlm.nih.gov/articles/PMC9898305/. Research on dimension stone extraction demonstrates that blast-induced micro-fracturing can propagate through stone blocks, reducing their structural integrity and commercial grade classification, particularly in brittle ornamental stones. Evidence role: mechanism; source type: research. Supports: the mechanism by which blast-induced fracturing affects stone block quality and commercial value. ↩
"Specifications and Guidelines for Rail Tunnel Design, ...", https://rosap.ntl.bts.gov/view/dot/68238/dot_68238_DS1.pdf. Urban metro tunnel projects frequently employ restricted heading dimensions in congested areas, with small-diameter tunnels and pilot headings commonly ranging from 2-4 meters to minimize surface disruption and accommodate challenging ground conditions. Evidence role: general_support; source type: education. Supports: typical dimensional constraints in urban tunnel construction that limit equipment access. Scope note: Specific dimensions vary by project design and geological conditions ↩
"Federal Explosives Licenses and Permits", https://www.atf.gov/explosives/federal-explosives-licenses-and-permits. Infrastructure development in densely populated regions has prompted various jurisdictions to implement stricter controls on explosive use, including expanded restricted zones and enhanced permitting requirements, particularly for projects near residential and sensitive areas. Evidence role: general_support; source type: government. Supports: regulatory trends restricting explosive use in infrastructure projects near populated areas. Scope note: Specific regulations vary by country and are subject to ongoing policy changes ↩
"Blasting Permitting | Department of Environmental Protection", https://www.pa.gov/agencies/dep/programs-and-services/mining/bureau-of-district-mining-operations/blasting-permitting. Safety regulations and humanitarian considerations typically impose restrictions on explosive use near populated areas including temporary settlements, with permitting authorities commonly requiring alternative methods or enhanced safety measures when operations occur near vulnerable populations. Evidence role: general_support; source type: institution. Supports: regulatory and safety considerations restricting explosive use near vulnerable populations. Scope note: Specific regulations depend on national authorities and project circumstances ↩
"(PDF) Dimensional Stone Extraction by Splitting Technique", https://www.academia.edu/37284053/Dimensional_Stone_Extraction_by_Splitting_Technique_Role_of_Joints. Hydraulic splitting systems generate controlled fracture propagation by applying concentrated tensile stress along predetermined planes through drilled holes, allowing fracture direction to follow the line of least resistance established by hole spacing and geological structure, in contrast to the radial stress fields of explosive methods. Evidence role: mechanism; source type: research. Supports: the mechanism by which hydraulic splitting achieves directional fracture control. ↩
"Geomechanical Analysis of Rock Brittleness with ...", https://mavmatrix.uta.edu/ees_theses/78/. Rock mechanics principles establish that hydraulic splitting exploits the significantly lower tensile strength of rock compared to compressive strength, with effectiveness increasing in materials having lower tensile-to-compressive strength ratios and pre-existing discontinuities that facilitate crack propagation. Evidence role: mechanism; source type: education. Supports: the relationship between rock strength properties and hydraulic splitting effectiveness. ↩
"Prediction of rock type from physical and mechanical ... - PMC", https://pmc.ncbi.nlm.nih.gov/articles/PMC12125199/. Hydraulic splitting methods achieve optimal performance in rocks with existing planes of weakness, such as bedding planes or foliation, and in brittle materials where tensile failure propagates readily, while massive homogeneous rocks with high tensile strength require more extensive preparation. Evidence role: mechanism; source type: education. Supports: geological characteristics that favor hydraulic splitting effectiveness. ↩
"A review of test methods for uniaxial compressive strength ...", https://www.sciencedirect.com/science/article/pii/S1674775524001914. Uniaxial Compressive Strength (UCS) serves as a fundamental rock mechanics parameter for characterizing material hardness and selecting appropriate excavation methods, with equipment specifications commonly referenced to UCS ranges to indicate operational suitability across different rock types. Evidence role: definition; source type: education. Supports: the relevance of uniaxial compressive strength as a rock characterization parameter for excavation equipment selection. ↩
